產品簡介

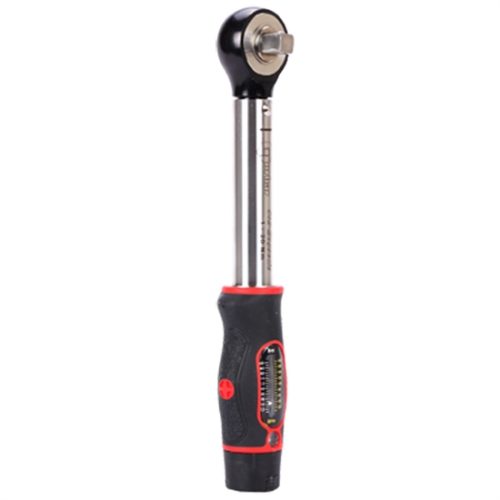

tti 無磁性 扭力扳手

用經仔細選擇及測試的材料來代替存在於標準扭力扳手中含鐵成分的材料,因此,僅會產生非常非常低的磁性。由於是以tt扭力扳手為基礎,所以,它們也保持了諾霸其它扭力扳手的高標準。特別適合應用於核磁共振掃描儀。

tti 無磁性 扭力扳手

用經仔細選擇及測試的材料來代替存在於標準扭力扳手中含鐵成分的材料,因此,僅會產生非常非常低的磁性。由於是以tt扭力扳手為基礎,所以,它們也保持了諾霸其它扭力扳手的高標準。特別適合應用於核磁共振掃描儀。

tti 無磁性 扭力扳手 - 功能介紹

  • 千分尺刻度,用於簡單且無錯誤的設置。(在雙刻度扳手上,千分尺增量適用於 nm 刻度。)
  • 快速輕巧的調整:整個刻度的調整可以快速完成,並且在大約十個完整的轉動過程中只需最少的努力(具體數字因型號而異)。
  • 舒適、耐用的手柄:手柄採用兩種材料製成;一種強度的基礎材料,上面覆蓋著柔軟的手感,可提供舒適性和防滑性。
  • 調整鎖:所有型號均配有鎖以防止意外調整設定扭矩。提供符合 iso 6789-1:2017 要求的符合性聲明。

including the following products:-

  • tti20 non-magnetic, 4 - 20 n·m, 35 - 180 lbf·in
  • tti50 non-magnetic , 10 - 50 n·m, 8 - 35 lbf·ft

norbar has launched it's first ever non-magnetic torque wrench, which is proving invaluable for medical equipment maintenance, notably in the mri field. it also has further applications across a range of industries wherever tools have to be used in the presence of a strong magnetic field.

carefully selected and tested materials replace the ferrous components present in standard torque wrenches, therefore giving an extremely low magnetic footprint and retaining the high standards of norbar's other torque wrenches.

other maintenance applications where the non-magnetic torque wrenches will be a real benefit include:

  • clean rooms
  • radar transmission centres
  • precision magnetic equipment
  • permanent magnetic generators (pmgs)
  • nuclear products
  • mine sweepers

functions:-

  • micrometer scale for simple and error free setting. (on dual scale wrenches, the micrometer increment applies to the n·m scale.)
  • quick and light adjustment: adjustment over the entire scale can quickly be achieved and with minimal effort in approximately ten complete turns (exact number varies by model).
  • comfortable, durable handle: the handle is constructed using two materials; a base material for strength overlaid with a soft feel grip for comfort and slip resistance.
  • adjustment lock: all models feature a lock to prevent accidental adjustment of the set torque.
  • supplied with a declaration of conformance, which meets the requirements of iso 6789-1:2017
  • very low magnetic signature. relative permeability, (µr) limit for the norbar non-magnetic torque wrench = 1.15
  • scale increments (n·m): 0.1
  • scale increments (lbf·ft): 1 /  scale increments (lbf·in): 10
  • weight: 0.50 kg

tti 無磁性 扭力扳手 - 產品規格

可調式—雙刻度

型號 料號 驅動方頭in 範圍n.m 範圍lbf.ft
tti20 13900 3/8” 4 - 20 35 - 180 lbf.in
tti20 13901 1/2” 4 - 20 35 - 180 lbf.in
tti50 13902 3/8” 10 - 50 8 - 35 lbf.ft
tti50 13903 1/2” 10 - 50 8 - 35 lbf.ft
