產品簡介

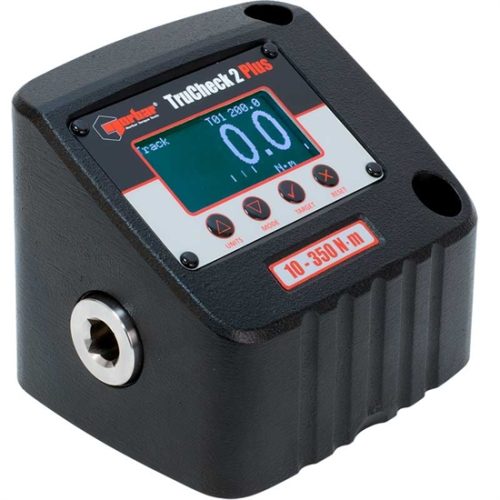

trucheck™ 2 & trucheck™ 2 plus

此款極具性價比的扭力扳手檢測儀已升級換代,擁有更多強大功能,更易於使用。trucheck™ 2旨在降低扭力扳手檢測儀的使用成本,並降低此類設備的使用難度。



trucheck™ 2 & trucheck™ 2 plus

trucheck™ 2 & trucheck™ 2 plus 功能介紹

  • 依據客戶策略監測扭力扳手性能,確保扳手處於巔峰狀態。
  • lcd顯示螢幕依據顏色變化顯示清晰的目標指示(plus版本獨有)。在昏暗區域依舊清晰可見提供雙版本,trucheck™ 2及trucheck™ 2 plus。
  • trucheck™ 2可設置選項極少,便於非專業用戶檢測音響型扭力扳手
  • trucheck™ 2 plus可設定扭矩單位,三種操作模式選擇(音響,錶盤及軌跡),最多可存儲15種目標值,12種語言選擇。
  • trucheck™ 2 plus用戶可設定目標值及公差。
  • 讀值精度:±1% (10nm及1100nmtrucheck™ 2型號的10%量程以下時為±2%)。
  • 內置micro usb 2.0接口實現usb充電。 trucheck™ 2 plus支持同時充電及數據傳輸。
  • 出廠附順時針方向可溯源校准證書。
  • 可遠端升級軟體,無需送返諾霸。

trucheck™ 2 is a cost effective torque wrench checker that has been redesigned to incorporate improved features whilst maintaining ease of use.
the trucheck™ 2 aims to cut the cost of purchasing a torque wrench checking system and remove the reservations over the complexity of using such equipment.

trucheck™ 2 features:-  ( &

  • allows torque tool performance to be monitored and tools kept in peak condition.
  • allows a selection of torque units, three modes of operation (click, dial and track), the ability to store up to 15 targets and select from 12 languages
  • allows operator to set a target value and tolerance
  • inbuilt micro usb 2.0 port enables power from any usb power source. plus versions allows for both power and data transfer simultaneously
  • if you order a ukas accredited calibration certificate (available at extra cost) this certificate will be provided in place of the traceable calibration certificate
  • software can be updated remotely, without the need to return the product to norbar
  • supplied with traceable calibration certificate in clockwise direction. a counter-clockwise calibration is available at additional cost
  • accuracy: ±1% reading accuracy (±2% when below 10% of range for the 10 n·m trucheck™ 2 model & the 1,100 n·m trucheck™ 2 model)
  • display: lcd display
  • auto reset hold time: 1,2 or 3 seconds
  • power consumption: 0.5w
  • environment: ip 40
  • electromagnetic compatibility (emc) directive: designed to comply with en 61326-1

:-

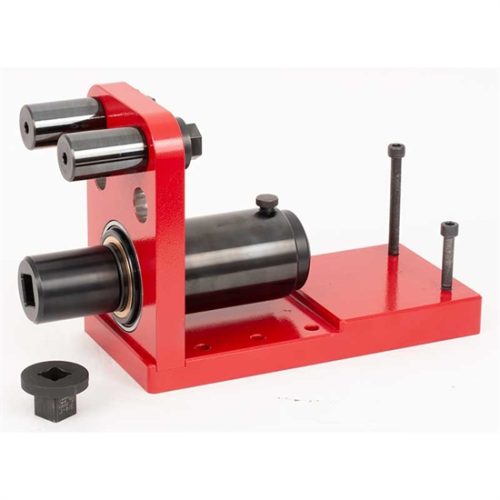

the power tool test fixture for trucheck 2 is a simple, robust device that allows non-impacting power tools up to 2,100 n·m to be tested. the universal torque reaction arrangement will suit reaction arms supplied as standard with most norbar and other pneumatic, electric and cordless torque tools. a complete system comprises the test fixture 80033 along with one of the trucheck 2 plus models, either 1,100 n·m (part number 43531) or 2,100 n·m (part number 43533) which must be ordered separately.

does not include:
- evotorque® battery tool
- trucheck™ 2

trucheck™ 2 & trucheck™ 2 plus 產品規格

0.1 - 30 n·m

型號 料號 內置傳感器凸六角驅動尺寸 範圍n.m
trucheck 2, 0.1 - 3 n·m 43514* 1/4” 0.1-3
trucheck 2 plus,0.1 - 3 n·m 43515* 1/4” 0.1-3
trucheck 2,0.5 - 10n·m 43516* 1/4” 0.5 - 10
trucheck 2 plus,0.5 - 10n·m 43517* 1/4” 0.5 - 10
trucheck 2,1.5 - 30n·m 43518 10mm 1.5 - 30
trucheck 2 plus,1.5 - 30n·m 43519 10mm 1.5 - 30

* 43514,43515,43516及43517帶1∕4"凸六角及1∕4"凹方頭
43518及43519帶10 mm凸六角,1∕4" 及 3∕8"凹方頭

3 - 2,100 n·m

型號 料號 範圍n.m 範圍lbf.ft
trucheck 2,3-65n·m 43520* 3-65 -
trucheck2 plus,3-65n·m 43521* 3-65 -
trucheck2 10-260lbfft 43522 - 10-260
trucheck2 plus,10-260lbfft 43523 - 10-260
trucheck2 10-350n·m 43524 10-350 -
trucheck2 plus,10-350 n·m 43525 10-350 -
trucheck2 40-800lbfft 43528@ - 40-800
trucheck2 plus,40-800lbfft 43529@ - 40-800
trucheck2,50-1,100n·m 43530@ 50-1100 -
trucheck2 plus,50-1,100n·m 43531@ 50-1100 -
trucheck2, 200-2,100 n·m 43532^ 200-2100 -
trucheck2 plus, 200-2,100 n·m 43533^ 200-2100 -

* 43520及43521帶3/8"凹方頭
43522,43523,43524及43525帶1/2"凹方頭
@ 43528, 43529, 43530及43531帶27 mm凸六角及4/8"凹方頭
^ 43532及43533帶27 mm凸六角及1"凹方頭

扭力測試儀備件

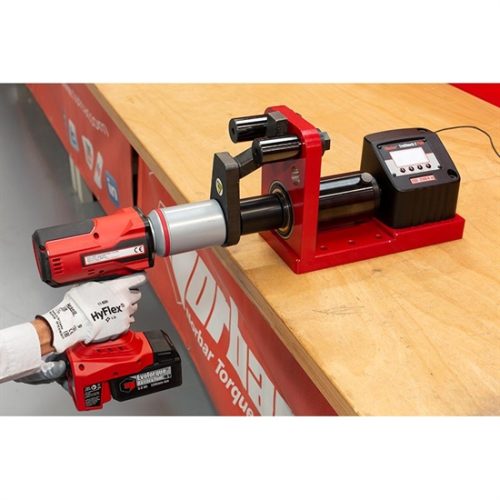

trucheck™ 2 動力工具測試夾具套組是一個簡便而牢固的設備,可用於最高2100nm的非衝擊動力工具的檢測。

整個檢測系統由測試夾具及trucheck™ 2 plus(另行訂購)組成,可選1100nm或2100nm型號,具體取決於所需扭矩量程。通用扭矩反作用裝置適用於絕大多數諾霸和其他品牌的氣動、電動、無線扭力扳手的反作用力臂。

備註:此測試夾具套組不適用於trucheck™初代產品。



型號 料號
trucheck 2適用 動力工具測試架(1000n.m及2100n.m通用) 80033
墊片襯套 81043
belleville 墊片組(一包8個墊片) 81044
緩衝器螺釘及螺母替換品 81045
