stpc智慧螺絲鎖附系統

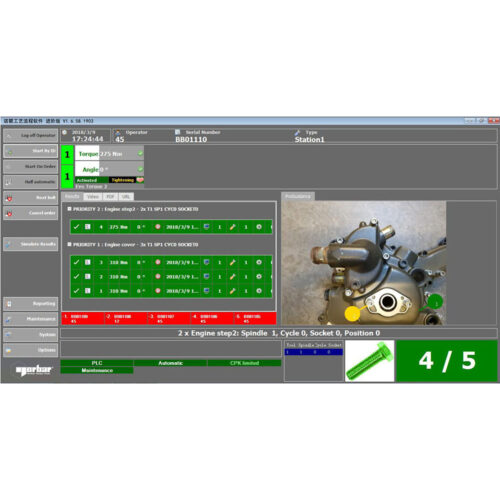

stpc智慧螺絲鎖附系統-功能介紹

• 防錯防漏功能：配合諾霸工具使用，大幅減少人為錯誤發生機率。
• 配合諾霸無線傳輸工具()，支持數據無線傳輸存儲。
• 強大的用戶管理功能，支持ic卡登錄系統，可以設置不同權限等級的用戶。
• 支持多國語言操作。
• 諾霸stpc智慧螺絲鎖附系統流程操作提示配合可視化操作指引，減少員工培訓次數，有效排除人為因素導致的錯誤可能。
• 通過barcode及id號碼信息，可順序定位該barcode及id碼所對應工件的锁附狀態（ok、ng、扭力、角度、時間）等信息。通過barcode/rfid查詢可以獲取對應锁附工件上的錯誤或漏擰信息。
• 使用與維護方便快捷。
• 多項設置功能：工具設置、操作人員設置、密碼更改設置、工作組次設置等。
• 扳手锁附數據查詢，根據所選擇锁附序號，所查詢锁附結果自動生成相關的锁附曲線及cp、cpk值。
• 軟體可實現锁附控制器控制管理。
• 對锁附工具的使用次數，距標定時間，距保養時間等數據進行採集並統計，實現故障趨勢報警要求。
• 使用諾霸stpc智慧螺絲鎖附系統進行工藝管控，無需控制盒，直接連接pc，實現實時指令操作與情況回饋，完美勝任產線控制、工作站通訊等諸多工藝要求。

stpc smart screw locking system - function introduction

• error-proof and leak-proof function: use with norbar tools to greatly reduce the probability of human error.
• with the wireless transmission tool (ebt), it supports wireless data transmission and storage.
• powerful user management function, supports ic card login system, and can set users with different authority levels.
• support multi-language operation.
• stpc smart screw locking system process operation prompts combined with visual operation guidelines reduce the number of staff training times and effectively eliminate the possibility of errors caused by human factors.
• through the barcode and id number information, the locking status (ok, ng, torque, angle, time) and other information of the workpiece corresponding to the barcode and id code can be sequentially located. through the barcode/rfid query, the error or missing screw information on the corresponding locked workpiece can be obtained.
• easy to use and maintain.
• multiple setting functions: tool setting, operator setting, password change setting, working group setting, etc.
• wrench locking data query, according to the selected locking serial number, the query locking result automatically generates the relevant locking curve and cp, cpk value.
• the software can realize the control and management of the locking controller.
• collect and count data such as the number of times the locking tool is used, the time from calibration, and the time from maintenance, so as to realize the alarm requirements for fault trends.
• the stpc smart screw locking system is used for process control, without the need for a control box, directly connected to the pc to realize real-time command operation and status feedback, and is perfectly capable of many process requirements such as production line control and workstation communication.
