產品簡介

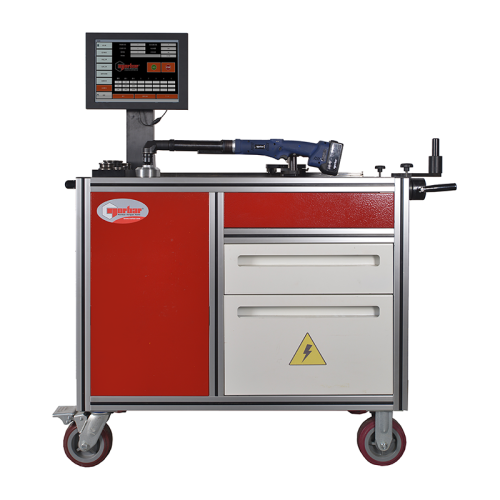

智慧扭力工具檢測車

全球獨家依據iso 6789:2017規程設計的移動式智慧扭力工具檢測車,滿足流水線智慧隨檢需求,大幅降低檢測成本!

智慧扭力工具檢測車

智慧扭力工具檢測車-功能介紹

  • 頭部作動加載模式配合全自動變速馬達,通過tms扭力管理系統 plus版軟件實現全自動智慧扳手校驗。
  • 實時通訊功能,智慧數據管理與追溯。
  • 最大靜態檢測值可達1500nm。最大動態檢測值可達1000n·m。
  • 多扭力單位選擇,滿足不同使用需求。
  • 設有超載保護及安全保護機構,確保使用安全。
  • 可直接將檢測數據傳入系統,自動儲存,實現扭力工具管理、檢測數據處理、cp/cpk、分析、檢測報告自動生成等功能。
  • 軟件模塊化設計,涵蓋常用,滿足客戶不同檢測需求。
  • 預設多種統計分析指標,便於工具管理。
  • 無縫對接客戶mes系統,實現數據智慧統籌管理。
  • 內置電源,支持8小時以上持續工作。
  • 工作檯面尺寸(mm):1000*550*900。
  • 整體尺寸(mm):1820*550*1470。



automatic intelligent torque tools trolley - introduction:-

global exclusive mobile automatic intelligent torque tools trolley which is designed in according with iso 6789: 2017. suitable for pipeline measurement at any time. great reduce measurement costs.
design for the measurement of small torque power tools and manual torque wrenches. (manual torque wrenches: 1-1500n.m, power tools: 1-700n.m)
the fully automatic loading device loads / unloads torque through a servo motor. the two-stage automatic loading speed is designed to meet the minimum time requirement (between 0.5 s and 2.0 s) for the torque from the 80% target value to the target value according to the iso6789: 2017-1.
the automatic intelligent torque tools trolley is equipped with a touch screen pc and measurement software, which can identify tools, operators and various information. the software can upload and store measurement data in real time. set the loading times according to the requirements of iso6789: 2017-1(type i and type ii is 5 times, type iii is 10 times) via the software.

functions:-

  • accuracy: ±0.5%.
  • head automatic / semi-automatic load mode. intelligent wrench measurement through tms plus ver. software. suitable for pipeline measurement at any time in according with iso6789.
  • easy to get the tool information via scan code for measurement.
  • real-time communication function. intelligent data management and traceability
  • max static measurement torque value: 1500n.m. max dynamic measurement torque value: 700n.m.
  • multiple torque unit selection to meet different requirements.
  • overload and safety protection mechanism to ensure use safety.
  • transfer measurement data to the system directly and store automatically. manage the torque tools with measurement data. cmk / cpk analysis. generate measurement report automatically and so on.
  • module design software. cover the common types of manual and power tools to meet customer's different measurement requirements.
  • customize measurement factors such as measurement times. generate custom reports.
  • intelligent management torque tools. set tool's measurement period and remind via software.
  • optional mes system module. direct store measurement data in the server for intelligent data management.
    connect analog bolts and transducers through a fixed ring to measure power tools.
  • the reaction arm hangs on the tool trolley during large torque measurement for self-balance.

智慧扭力工具檢測車 - 料號

型號 料號
智慧扭力工具檢測車 se62013fan

智慧扭力工具檢測車 - 配件

可選配傳感器

配置傳感器
型號 料號 校驗範圍 驅動方頭
2.5 50588 0.5-2.5 n·m 1/4"
10 50590 2-10 n·m 1/4"
25 50591 5-25 n·m 3/8"
100 50593 20-100 n·m 1/2"
500 50596 100-500 n·m 3/4"
1500 50766 300-1500 n·m 1"

可選配緩衝器

配置緩衝器
型號 料號 校驗範圍 六角對邊尺寸
2.5 50539 2 n·m 1/4"
10 50540 10 n·m 1/4"
25 50541 25 n·m 1/4"
100 50692 150 n·m 12 mm
500 50819 400 n·m 17 mm
1500 50758 1000 n·m 1"
