產品簡介

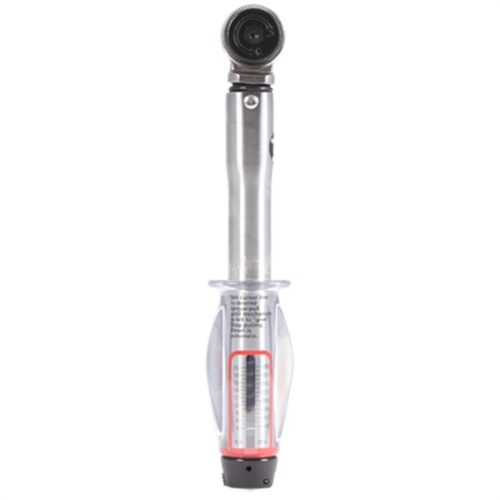

sl0 細長型扭力扳手

sl0 扭力扳手是我們的“slimline”系列中最小的扳手,範圍為 4 – 20 n·m (40 – 180 lbf·in)。

sl0 細長型 扭力扳手

sl0 扭力扳手是我們的“slimline”系列中最小的扳手,範圍為 4 - 20 n·m (40 - 180 lbf·in)。

sl0 細長型 扭力扳手 - 功能介紹

  • 精確度達到讀值的±3%,滿足iso6789-1:2017。
  • 達到設定扭矩時有明顯的信號。
  • 高質量的72齒棘輪使之能使用於狹小空間。
  • 裝有固定頭的扭矩扳手具有上下切換的驅動方頭用於順、逆時針的扭矩鎖緊。
  • 塑模成型的手柄,有助於正確把握手柄並使得操作者感到舒適。

including the following products:-

  • sl0 adjustable ratchet
  • sl0 adjustable 9 x 12mm female end
  • sl0 adjustable 16mm spigot torque handle
  • sl0 fixed head
  • sl0 'p' type

the sl0 torque wrench is the smallest wrench in our 'slimline' range, with a range of 4 - 20 n·m (40 - 180 lbf·in).

functions:-

  • high quality 72 tooth ratchet allows use in confined spaces.
  • torque handle versions, both 16mm spigot and 9 x 12 mm female.
  • production 'p' type versions designed to discourage unauthorised alteration.
  • unmistakable signal when set torque is reached.
  • supplied with a declaration of conformance, which meets the requirements of iso 6789-1:2017
  • on request ‘p’ type wrenches can be set, marked with the setting and certified for production line applications requiring a sealed torque setting. only if a pre-set has been requested will the tool be supplied with a declaration of conformance

about norbar, world leaders in torque equipment

cutting edge:- norbar’s state-of-the-art factory facilities ensure we provide the very latest design, manufacturing and quality control technology to achieve the highest level of innovation and precision in the field of torque control equipment.

family values:- descendants of the founder, bill brodey, still participate in the business and the company remains every bit as passionate about providing customers with the highest quality products and services as bill was when manufacturing that first torque wrench.

sl0 細長型 扭力扳手 產品規格

棘輪可調式—雙刻度

型號 料號 驅動方頭in 範圍n.m 範圍lbf.in
sl0 1/4" 11123 1/4" 4 - 20 40 - 180
sl0 3/8" 11087 3/8" 4 - 20 40 - 180

可調式—固定頭-雙刻度

型號 驅動方頭in 料號 範圍n.m 範圍lbf.in
sl0 3/8" 固定頭 11125 3/8" 4 - 20 40 - 180

可換頭可調式—雙刻度

型號 驅動方頭in 料號 範圍n.m 範圍lbf.in
sl0凸圓頭 11126 16 mm 凸圓頭 4 - 20 40 - 180
sl0 fth 11122 9 x 12 mm 凹方頭 4 - 20 40 - 180

單能型“p”型(必須使用扭力測試儀進行設定)

‘p’型單能型產品設計用來阻止未經批准而調整扭矩數值。它們沒有刻度尺,所以扭矩值的再次設置必須在扭矩測試設備上進行,例如諾霸的trucheck™。

型號 料號 驅動方頭in 範圍n.m 範圍lbf.in
sl0 3/8"固定頭 11089 3/8" 1 - 20 10 - 180
sl0 1/4" 11085 1/4" 1 - 20 10 - 180
sl0 3/8" 11086 3/8" 1 - 20 10 - 180
sl0 凸圓頭 11090 16 mm 凸圓頭 1 - 20 10 - 180
sl0 fth 11088 9 x 12 mm 凹方頭 1 - 20 10 - 180
