旋轉傳感器
旋轉傳感器設計用來測量旋轉軸心的扭矩輸出，如脈衝動力工具和某些帶有明顯的離合器作用的非脈衝工具。
該系列產品在測試脈衝工具時呈現出一流的性能，同時隨貨提供諾霸實驗室的ukas認可校準證書。
這些傳感器被稱為“smart”智慧型傳感器。內置一個存儲電路，包含有關傳感器的基本信息，可以通過適當的儀器(tst、ttt、ttl-he & t-box 2)讀取，從而減少了設置時間。
通過手工輸入相關校準詳細信息，也可與無法讀取內存信息的儀器一起使用。
備註：不能用於衝擊型工具。
提供角度測量。

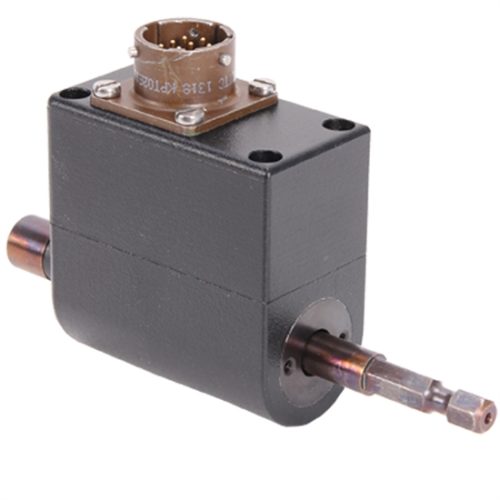

旋轉傳感器
旋轉傳感器-規格介紹
旋轉傳感器設計用於測量連續旋轉軸的扭矩。 這個新系列提供了一個額外的型號，容量為 5 n·m，帶有脈衝工具的同類領先性能，並將提供 norbar 實驗室的 ukas 校准證書。 這些換能器被稱為。 它們具有存儲電路形式的內置智能，其中包含有關傳感器的基本信息，可以通過適當類型的儀器（tst、ttt、ttl-he 和 t-box）讀取，從而減少設置時間 . 他們還將通過手動輸入相關校準細節來處理無法讀取內存信息的儀器。
- 根據 bs7882:2017 分類，主要分類範圍通常優於 1 類（讀數的 ±0.5%）。
- 校準從容量的 5% 到 100%。

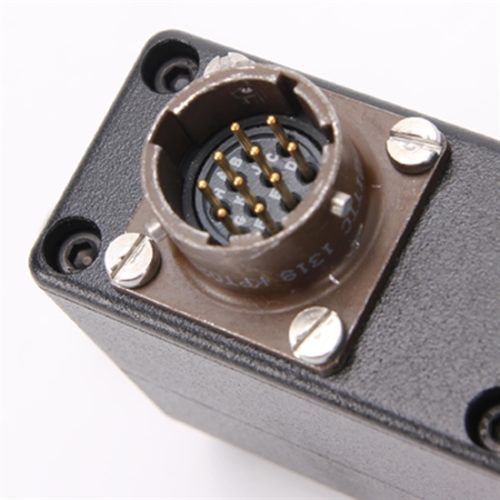

- 配備 10 針軍用連接器 ab05-2100-12-10pn-59。
- 還提供角度測量型號，請諮詢諾霸了解技術細節和可用性。

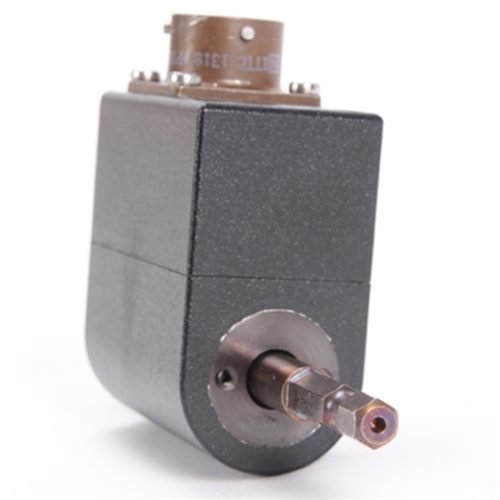

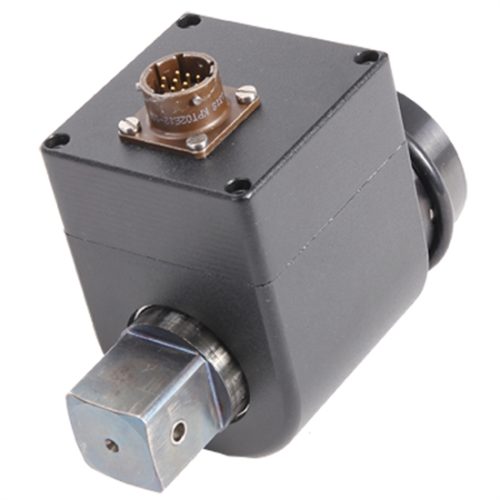

| 型號 | 料號 | 範圍 n.m | 範圍 lbf·ft | 驅動頭尺寸 |
| 1/4" m/f六角 | 50708.xxx | 0.25-5 | - | 1/4" |
| 1/4" m/f六角 | 50709.xxx | 1-20 | - | 1/4" |
| 1/4" m/f驅動方頭 | 50710.xxx | 1-20 | - | 1/4" |
| 1/4" m/f驅動方頭 | 50719.xxx | - | 0.75-15 | 1/4" |
| 3/8" m/f驅動方頭 | 50711.xxx | 3.75-75 | - | 3/8" |
| 3/8" m/f驅動方頭 | 50720.xxx | - | 2.5-50 | 3/8" |
| 1/2" m/f驅動方頭 | 50712.xxx | 10-200 | - | 1/2" |
| 1/2" m/f驅動方頭 | 50721.xxx | - | 7.5-150 | 1/2" |
| 3/4" m/f驅動方頭 | 50713.xxx | 12.5-250 | - | 3/4" |
| 3/4" m/f驅動方頭 | 50722.xxx | - | 10-200 | 3/4" |
| 3/4" m/f驅動方頭 | 50714.xxx | 25-500 | - | 3/4" |
| 3/4" m/f驅動方頭 | 50723.xxx | - | 15-300 | 3/4" |
| 1" m/f驅動方頭 | 50715.xxx | 75-1,500 | - | 1" |
| 1" m/f驅動方頭 | 50724.xxx | - | 50-1,000 | 1" |
rotary sensor - specification introduction
rotary transducers are designed to measure the torque from continuously rotating shafts. this new range offers an additional model of 5 n·m capacity and class leading performance with impulse tools and will be supplied with a ukas calibration certificate from norbar's laboratory. these transducers are known as 'smart' transducers. they have built-in intelligence in the form of a memory circuit which contains essential information about the transducer which can be read by the appropriate type of instrument (tst, ttt, ttl-he & t-box), thus reducing set-up time. they will also work with instruments that cannot read the memory information, by inputting the relevant calibration details manually.
- classified to bs7882:2017, typically better than class 1 for the primary classification range (±0.5% of reading).
- calibration from 5% to 100% of capacity.
- fitted with 10 pin military connector ab05-2100-12-10pn-59.
- angle measurement models also available, please consult norbar for technical details and availability.
- angle power requirements 5v dc (40mamax)
- *continuous is defined as 100% usage at the given speed in either direction and intermittent as 10% usage of the total time at the given speed.
technical specifications
- weight: 0.207 kg
- temp range operating: -10°c to 50°c
- temp range storage: -20°c to 70°c
- thermal effect on span: < /- 0.03%/°c
- thermal effect on zero: < /- 0.01%/°c
- torsional deflection: < 1°
- fatigue: > 10 exp 7 cycles
- max torsion capacity: 150%
- maximum rpm - continuous: 5000
- maximum rpm - intermittent: 11000
