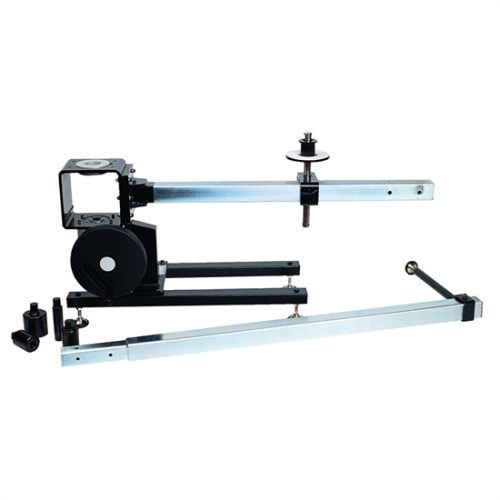

iso 3000 扭力扳手校準架

iso 3000 扭力扳手校準架-功能介紹

• 1250:1的高傳動比齒輪箱可輕鬆施加大扭力。
• 配合t-box™ 2使用，計時功能令扭力施加比率符合iso 6789:2017的要求。
• 該扭力扳手校準架可使用諾霸靜態傳感器系統輕鬆更換傳感器。
• 浮動反作用力點可最大限度的減少扳手的側向載荷。滿足iso 6789:2017要求將被測扳手寄生力降至最低的規程。
• 配合反作用力臂延長桿可檢測2200mm的扳手。可移除以節約空間。在未安裝反作用力臂延長桿的情況下，扳手可檢測長度最長為1100mm。

*另有手動測試架 iso 1500n.m提供，料號60300。

torque wrench calibration stand - function introduction

these loaders allow torque wrenches to be calibrated or tested in accordance with iso 6789:2003, bs en 26789:2003. their function is to take full advantage of the accuracy of norbar's torque measuring systems by reducing operator induced variations in the calibration process.

• the design allows for easy interchange of transducers using the norbar static transducer system
• floating reaction point minimises side loads on wrench.
• optional small reaction plate (part code 20606) allows torque wrenches down to 125mm in length to be tested.
• the high ratio, 1250:1 gearbox allows high torques to be applied, whilst ensuring that the operator does not exceed the rate of increase of torque specified in the standards.
• reaction extension bar allows wrenches up to 2250 mm to be tested. this can be removed to save space.
• includes a selection of adapters to enable torque wrenches to be calibrated with an appropriate transducer.

introduction

the norbar iso 3000 torque wrench loader is designed to test torque wrenches up to a maximum capacity
of 3000 n∙m or 2200 lbf∙ft.
to measure the applied torque a torque transducer coupled to an appropriate measurement instrument are
required.

safety precautions

• the iso 3000 is heavy. take care when installing.
• ensure the operating area is capable of taking the weight of the iso 3000.
• trapping hazard - keep hand and loose clothing away from the torque wrench during use.
• to avoid damage to the torque wrench under test do not exceed the wrench set torque value.
• to avoid damage to the transducer do not exceed the maximum capacity.
• never exceed the maximum torque capacity of the iso 3000 (3000 n∙m / 2200 lbf∙ft).
• do not operate without a torque measurement system connected and working.
• the iso 3000 is designed for testing torque tools, do not use for other purposes.
