產品簡介

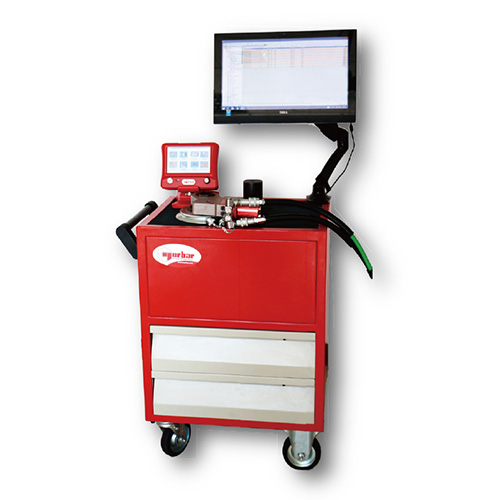

油壓扭力扳手檢測車
諾霸隆重推出專門針對用戶工作現場油壓扭力扳手現場檢測難題而設計的油壓扭力扳手檢測車！
諾霸油壓扭力扳手檢測車設有行走輪，可輕鬆將檢測車推至所需檢測油壓扭力扳手的工位現場進行檢測工作。同時搭載不同量程的傳感器，可滿足大範圍的工具檢測。
油壓扭力扳手檢測車
油壓扭力扳手檢測車-功能介紹
-
- 可輕鬆更換不同扭力傳感器，扭力量程範圍可達到100n·m-50000n·m。
- 傳感器使用了軸承來支撐，提高了測試精度。
- 反作用柱可根據實際情況進行挂靠點的更換。
- 對六角油壓扭力扳手，有各種各樣的六角轉四方的轉接頭供使用。
- 行走輪自帶鎖定裝置。可輕鬆移動檢測小車，實現現場實時檢測。
- 配合一體機與扭力測試儀，可直接將檢測數據輸入電腦。
油壓扭力扳手檢測車 -產品規格
| 尺寸 | 油壓扭力扳手測量範圍 | 可選顯示器 | 可選儀器 |
| 680mm*450mm*1350mm | 100-5000n·m | ttt / t-box 2 | 靜態扭力傳感器全系列 |
油壓扭力扳手檢測車 -選配方案
| 方案料號 | 配置傳感器 | ||
| 料號 | 範圍n·m | 驅動方頭 | |
| se56001-tr1 | 50599.log | 500-5000 | 3/4" 1" 11/2" |
| 50781.log | 5000-50000 | 1" 11/2" 21/2" | |
| se56001-tr2 | 50599.log | 500-5000 | 3/4" 1" 11/2" |
| se56001-tr3 | 50781.log | 500-5000 | 1" 11/2" 21/2" |
| se56001-tr4 | 50599.log | 5000-50000 | 3/4" 1" 11/2" |
| 50781.log | 500-5000 | 1" 11/2" 21/2" | |
| se56001-tr5 | 50599.log | 5000-50000 | 3/4" 1" 11/2" |
| se56001-tr6 | 50781.log | 5000-50000n·m | 1" 11/2" 21/2" |
| 方案料號 | 配置顯示器 | 配置傳輸線 | |
| 料號 | 型號 | 料號 | |
| se56001-tr1 | 43228 | ttt | 60217.200 |
| se56001-tr2 | 43228 | ttt | 60217.200 |
| se56001-tr3 | 43228 | ttt | 60217.200 |
| se56001-tr4 | 43258 | ttt / t-box 2 | 60217.200 |
| se56001-tr5 | 43258 | ttt / t-box 2 | 60217.200 |
| se56001-tr6 | 43258 | ttt / t-box 2 | 60217.200 |
hydraulic wrench calibration trolley - introduction
norbar launch hydraulic wrench calibration trolley for customer's on-site measuring of hydraulic wrench.
norbar hydraulic wrench calibration trolley is designed with walking wheels for on-site measuring.the trolley also supplies large measuring range with different range transducers.
hydraulic wrench calibration trolley - key features
- easy to replace.
- measuring torque range is 100n.m-50000n.m.
- use bearing to support the transducer for higher measuring accuracy.
- replace reaction point by reactiong cylinder in actual situation.
- different adapters (hexagon to square) for hexagon hydraulic wrench.
- walking wheels with auto lock feature.
- move the trolley for on-site measuring on time easily.
- use integrated computer to save data with torque testers.
