靜態傳感器-帶法蘭面-fmt

靜態傳感器-帶法蘭面-fmt-功能介紹

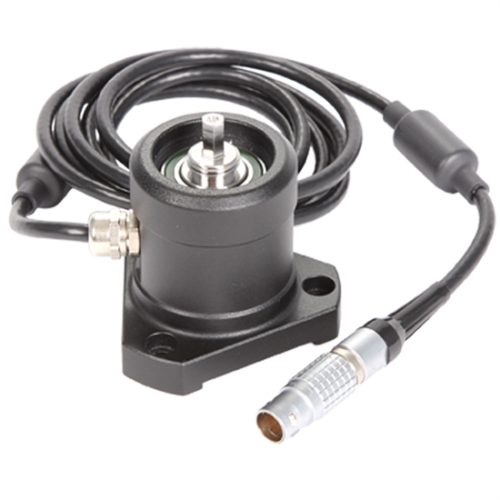

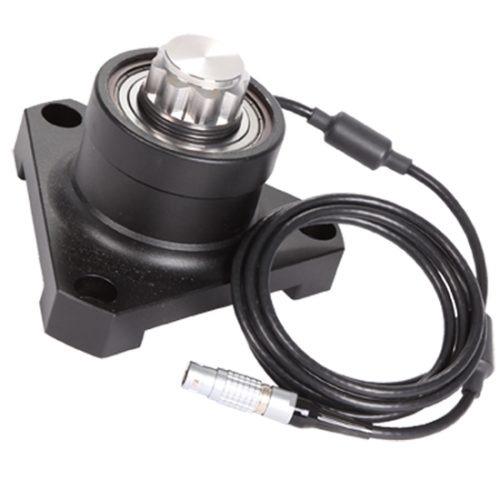

靜態傳感器-帶法蘭面-fmt與固定座連接在一起，以便將傳感器牢固固定到工作臺面上。感測器上附有感測器電線，並與一個高品質的lemo連接器連接，適用於與儀器的連接。

• 精度：初級分類範圍為 1 級（讀數的 /-0.5%）。
• “智能”- tst、ttt、ttl-he 和 t-box 儀器將自動識別校準細節。
• 包括緩衝器配件，允許對電動工具測試進行模擬量測。
• 隨附 ukas 校准證書。

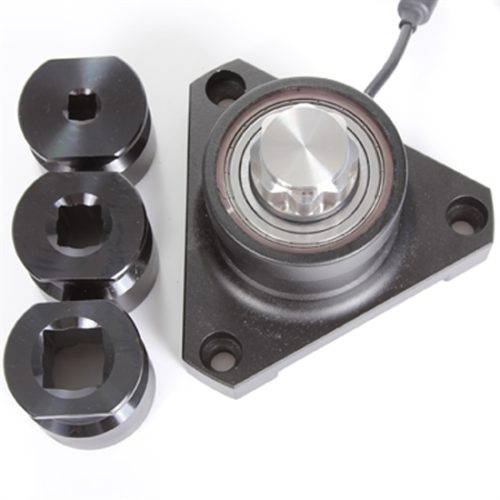

• 轉接頭配件具有 22mm 外螺紋雙方形驅動器，並隨附精密製造的方形驅動器轉接頭配件。、

flange mounted transducers incorporate mounting points for securely fixing the transducer to the working surface. the transducer lead is also included and is fitted with a high quality lemo® connector.

static sensor-with flange surface feature-fmt-function

• accuracy: class 1 for the primary classification range ( /-0.5% of reading).
• 'smart' - tst, ttt, ttl-he and t-box instruments will automatically recognise calibration details.
• rundown fixture is included allowing joint simulation for power tool testing.
• supplied with ukas calibration certificate.
• transducer has a 22mm male bi-square drive and is supplied with a precision made square drive adaptor.

technical specifications

• weight: 2.79 kg
• temp range operating: -10°c to 50°c
• temp range storage: -20°c to 70°c
• thermal effect on span: < /- 0.03%/°c
• thermal effect on zero: < /- 0.01%/°c
• torsional deflection: < 1°
• fatigue: > 10 exp 7 cycles
• maximum torsion capacity: 150%
• connector: lemo®
• drive 1: 3/8"
• drive 2: 1/2"

靜態傳感器-帶法蘭面-fmt

靜態傳感器-帶法蘭面-fmt-配件

靜態傳感器-帶法蘭面-fmt-支架配件
