扭力手柄頭部配件 - 凸圓頭 凹方頭

扭力手柄頭部配件 - 凸圓頭 凹方頭 - 功能介紹

適用于諾霸扳手凸圓頭及凹方頭更換所用配件。

spanner end fittings are designed to suit norbar ended torque handles.

functions:-

• forged alloy steel.
• ends easily interchangeable.
• torque handle calibrated to give correct torque at nut/bolt.
• blank end adaptors are available for applications where customised spanners are required.
• available in: open ends, ring ends and 3/4" fixed head.

扭力手柄頭部配件 - 凸圓頭 凹方頭 - 產品規格

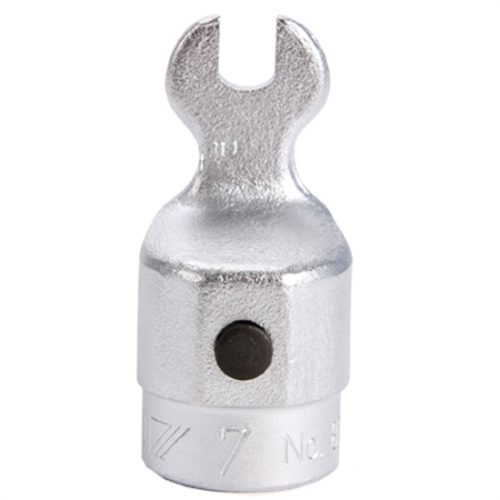

16mm 凸圓頭 開口頭

料號	公制	料號	英制
hs-29841	7mm	hs-29701	1/4”
hs-29842	8mm	hs-29702	5/16”
hs-29843	9mm	hs-29703	3/8”
hs-29844	10mm	hs-29704	7/16”
hs-29845	11mm	hs-29705	1/2”
hs-29846	12mm	hs-29706	9/6”
hs-29847	13mm	hs-29707	5/8”
hs-29848	14mm	hs-29708	11/6”
hs-29849	15mm	hs-29709	3/4”
hs-29850	16mm	hs-29710	13/6”
hs-29851	17mm	hs-29711	7/8”
hs-29876	18mm	hs-29712	15/16”
hs-29877	19mm	hs-29713	1
hs-29852	20mm	hs-29714	1 1/16”
hs-29853	21mm	hs-29715	1 1/8”
hs-29854	22mm	hs-29716	1 3/16”
hs-29855	23mm	hs-29717	1 1/4”
hs-29856	24mm	hs-29718	1 5/16”



料號	公制
hs-29857	25mm
hs-29858	26mm
hs-29878	27mm
hs-29879	28mm
hs-29880	29mm
hs-29861	30mm
hs-29863	32mm
hs-29864	36mm
hs-29963.22	22mm
hs-29963.24	24mm
hs-29963.27	27mm
hs-29963.30	30mm
hs-29963.32	32mm
hs-29964.34	34mm
hs-29963.36	36mm
hs-29963.41	41mm
hs-29963.46	46mm



扭力手柄頭部配件-16mm 凸圓頭 梅花頭

16mm 凸圓頭 梅花頭

料號	英制
hs-29726	1/4”
hs-29727	5/16”
hs-29728	3/8”
hs-29729	7/16”
hs-29730	1/2”
hs-29731	9/16”
hs-29732	5/8”
hs-29733	11/16”
hs-29734	3/4”
hs-29735	13/16”
hs-29736	7/8”
hs-29737	15/16”
hs-29738	1
hs-29739	1 1/16”



料號	公制
hs-29881	7mm
hs-29882	8mm
hs-29883	9mm
hs-29884	10mm
hs-29885	11mm
hs-29886	12mm
hs-29887	13mm
hs-29888	14mm
hs-29889	15mm
hs-29890	16mm
hs-29891	17mm
hs-29899	18mm
hs-29900	19mm
hs-29892	20mm
hs-29893	21mm
hs-29894	22mm
hs-29895	23mm





扭力手柄頭部配件-22mm 凸圓頭 梅花頭

22mm 凸圓頭 梅花頭

料號	公制
hs-29960.22	22mm
hs-29960.24	24mm
hs-29960.27	27mm
hs-29960.30	30mm
hs-29960.32	32mm
hs-29960.36	36mm
hs-29960.41	41mm
hs-29960.46	46mm



料號	英制
hs-29962.18	1 1/8”
hs-29962.19	1 3/16”
hs-29962.20	1 1/14”
hs-29962.21	1 5/16”
hs-29963.23	1 7/16”
hs-299641.24	11/2”





扭力手柄頭部配件-9 x 12mm & 14 x 18mm 凹方頭 開口頭

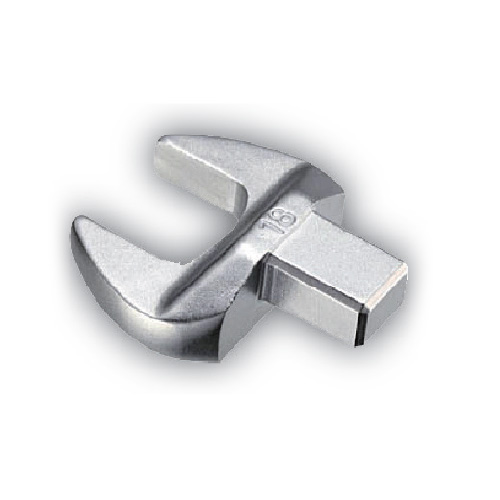

9 x 12 mm 凹方頭 開口頭

料號	公制
90008-7	7mm
90008-8	8mm
90008-9	9mm
90008-10	10mm
90008-11	11mm
90008-12	12mm
90008-13	13mm
90008-14	14mm
90008-15	15mm
90008-16	16mm
90008-17	17mm
90008-18	18mm
90008-19	19mm
90008-21	21mm
90008-22	22mm
90008-24	24mm
90008-27	27mm
90008-30	30mm
90008-32	32mm
90008-36	36mm



14 x 18 mm 凹方頭 開口頭

料號	英制
90014-13	13mm
90014-14	14mm
90014-15	15mm
90014-16	16mm
90014-17	17mm
90014-18	18mm
90014-19	19mm
90014-21	21mm
90014-22	22mm
90014-23	23mm
90014-24	24mm
90014-25	25mm
90014-26	26mm
90014-27	27mm
90014-30	30mm
90014-32	32mm
90014-34	34mm
90014-36	36mm
90014-40	40mm
90014-41	41mm





扭力手柄頭部配件-9 x 12mm & 14 x 18mm 凹方頭 梅花頭

9 x 12 mm 凹方頭 梅花頭

料號	公制
90022-7	7mm
90022-8	8mm
90022-10	10mm
90022-11	11mm
90022-12	12mm
90022-13	13mm
90022-14	14mm
90022-15	15mm
90022-16	16mm
90022-17	17mm
90022-18	18mm
90022-19	19mm
90022-21	21mm
90022-22	22mm



14 x 18 mm 凹方頭 梅花頭

料號	公制
90022-7	7mm
90022-8	8mm
90022-10	10mm
90022-11	11mm
90022-12	12mm
90022-13	13mm
90022-14	14mm
90022-15	15mm
90022-16	16mm
90022-17	17mm
90022-18	18mm
90022-19	19mm
90022-21	21mm
90022-22	22mm





扭力手柄頭部配件 - 9 x 12mm 凹方頭 梅開頭

9 x 12 mm 凹方頭 梅開頭

料號	公制
90027-10	10mm
90027-11	11mm
90027-12	12mm
90027-13	13mm
90027-14	14mm
90027-16	16mm
90027-17	17mm
90027-18	18mm
90027-19	19mm
90027-21	21mm
90027-22	22mm
