工具控制器 — 基於ttt - 功能介绍：

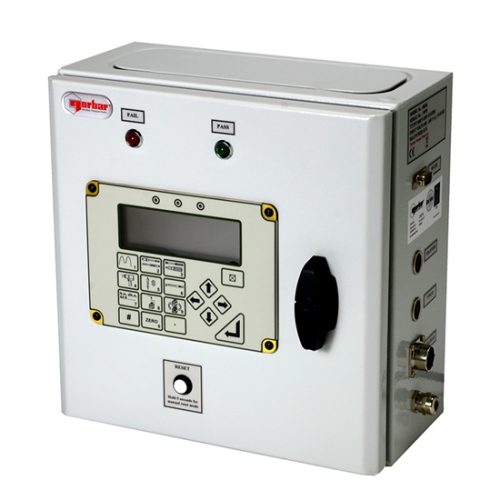

工具控制器關閉系統安裝在墻面箱體内，配合norbar ptm系列外部控制型氣動扭力扳手產品使用。

較之内部控制版本氣動扭力扳手，擁有更大範圍的功能。

tool controller, shut-off system in wall box -  introduction:-

the tool controller shut-off system is supplied in a wall box for 'external control' versions of the norbar ptm series of tools and can give a much greater range of functionality than is possible on the 'internal control' version of the tool.

also available with a printer, see part no. .

工具控制器 — 基於ttt - 產品參數：

工具控制器

工具控制器傳感器連接綫

*可付費定制其他長度的連接綫。
請聯係鴻石獲得更多資訊。

閥門檢測工具控制器

用於pneutorque遠端工具的工具控制器。配有環狀扭力和角度感測器及電磁閥組件。

• 10"觸控式螢幕 hmi & plc安裝在塗漆鋼質外殼中，室內/車間工位使用
• 可輸入閥門測試所需詳細資訊，操作員，時間，日期，扭力限制和角度/轉數限制
• 正向/反向迴圈至用戶設定的迴圈數值，最高可達32,000°
• 1個扭力感測器埠，用於“.loga”或“.log”連接
• 1個雙電磁閥埠，用於連接閥門元件
• 1個手持遙控器輸入埠
• 2個極限開關埠（用於感測器無法測量角度的位置）
• 1個自訂壓力感測器埠（ 2mv/v），用於資料記錄（非工具關閉）
• 1個rs232 1個usb資料輸出埠
• 即時扭力及角度或扭力及轉數資料流程
• 採集測試資料並以csv格式輸出至外接u盤，用於生成定制化測試報告及圖表
• 急停按鈕及扭力超載限制功能
• 閥門測試控制器套組內帶有手持遙控器的工具控制器，配合ac伺服驅動或氣動工具一起使用

valve testing system -  introduction:-

typical applications include the testing of ball valves requiring cyclical rotation 0 - 90˚ / 90 - 0˚, whilst recording torque vs angle data. testing of gate valves / valve actuators by opening & closing whilst recording torque vs angle / turns data. the test must be remotely controlled from outside of the test chamber, where the test valve is pressurised.

• 10” touchscreen hmi & plc housed in painted steel enclosure for indoor / workshop use
• test data capture and output in csv format onto external usb drive, time & date stamped
• up to 20 targets can be set against a test
• generate customer test reports and produce graphs
• real time torque & angle or torque & turns data streaming via rs232 serial port
• precision controlled low noise ac servo drive
• operates pneumatic (via solenoid valves), or ac servo drive tools
• using the ac servo drive an optional lock can be added to hold a butterfly valve at a prescribed angle
• dedicated input ports for pressure, temperature and proximity sensors
• controller available as separate component to upgrade existing valve testing kits
• automatic recognition of smart transducers
• forward / reverse cycling - user programmable number of cycles, variable up to 32,000 sweeps
• emergency stop button and torque overload limit function
• utilises norbar's tried and tested pneutorque multiplier along with torque and angle transducers - various capacities available
• torque range: 100 - 300,000 n·m (capacities up to 500,000 available on application)
• powerful brushless motor is quiet and maintenance free
• option to include network capability

3通關閉閥

雙電磁閥組裝

*適用於特殊工具控制器
