產品簡介

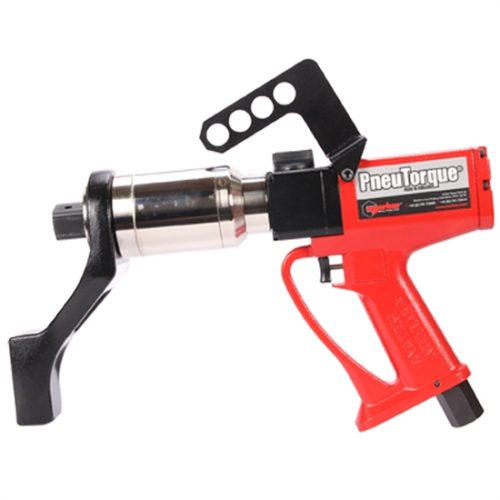

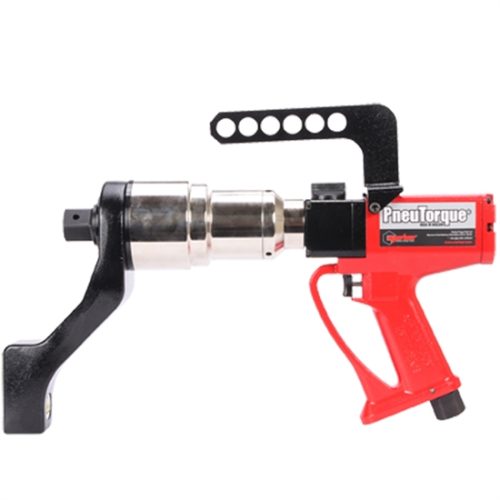

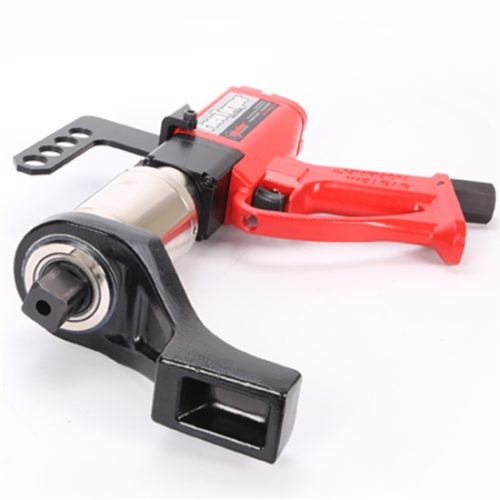

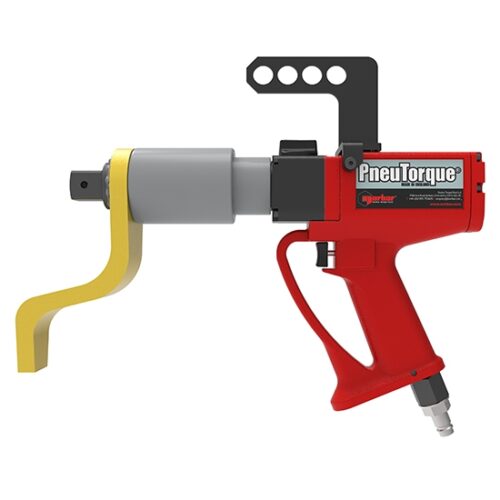

pneutorque® ptm™系列 氣動扭力扳手
pneutorque® ptm™系列 氣動扭力扳手
目前市場上重量輕且操作快速的氣動扳手設計。牢固耐用的齒輪箱設計，在操作時扳手本身可以保持平衡且重量很輕，可與螺絲保持很好的接觸以達到鎖緊的扭力。
pneutorque® ptm™系列 氣動扭力扳手 - 功能介紹
- 格外輕便的52mm及72mm齒輪箱令工具輕巧而具有極佳的平衡感。
- 配備輕質堅固的鋁質反作用力臂作為標準件。
- 同樣提供其他反作用力臂選擇最大化多功能性。
- 安靜—空轉時低於83db(a)。
- 可快速操作完成螺栓拆裝。
- 從20%到100%範圍內，扭矩重複度±5%。
- introduction:-
the latest extension to the ptm tool range brings the speed advantage to the twin motor handle to higher capacity pneutorque models.
coupled with new gearbox designs, these new models deliver an ideal balance between robustness, speed and weight.
functions:-
- light weight - single direction stall tool weighs just 3.8 kg.
- quiet : noise level : 84db(a), with an uncertainty k = 3db, when free-running
- non impacting - low vibration levels make these tools comfortable and safe to use.
- square drive is quickly and easily replaceable.
- 'soft start' trigger controls / aids socket location and allows gradual and safe reaction location.
- for safety, gearbox can rotate independently from the handle so that reaction forces are not transmitted back to the operator.
- fast - 800 n·m version has a free speed of 175 rpm for rapid bolt run-down.
- 1" square drive available, part no. 18545.
- on bi-directional tools, the direction control knob is locked while the tool is running to prevent accidental damage to the gearbox.
about norbar, world leaders in torque equipment
cutting edge - norbar’s state-of-the-art factory facilities ensure we provide the very latest design, manufacturing and quality control technology to achieve the highest level of innovation and precision in the field of torque control equipment.
family values - descendants of the founder, bill brodey, still participate in the business and the company remains every bit as passionate about providing customers with the highest quality products and services as bill was when manufacturing that first torque wrench.
globally available - norbar is the only torque equipment manufacturer to be able to offer torque tool and instrument calibration services to the original factory standard on four continents.
pneutorque® ptm™系列 氣動扭力扳手 - 產品規格
失速型工具-雙向
| 型號 | 料號 | 驅動方頭in | 範圍n.m |
| ptm-52-500-b | 18100.b06 | 3∕4" | 100-500 |
| ptm-52-800-b | 18101.b06 | 3∕4" | 160-800 |
| ptm-72-1000-b | 18102.b06 | 3∕4" | 200-1000 |
| ptm-72-1350-b | 18103.b08 | 3∕4" | 270-1350 |
| ptm-68-2000-b | 181456.b08 | 3∕4" | 400-2000 |
| ptm-80-2700-b | 180296.b08 | 1" | 540-2700 |
| ptm-92-4000-b | 18159.b08 | 1" | 800-4000 |
| ptm-92-4000-b | 18159.b12 | 1 1/2" | 800-4000 |
| ptm-119-4500-b | 18108.b12 | 1 1/2" | 900-4500 |
| ptm-119-6000-b | 18109.b12 | 1 1/2" | 1200-6000 |
*含便攜盒。
失速型工具同樣提供順時針轉向工具，訂購時將料號內的b替換為f即可。
