產品簡介
鼻型延長桿
適用於ptm & pt系列 鼻型延長桿
在工具工作空間受限的情況下，可使用特殊的鼻型延長桿。
典型應用是重型車輛后輪上的螺母。
適用於卡車及汽車輪胎的 ptm-72 鼻型延長桿
適用於卡車及汽車輪胎的 ptm-72 鼻型延長桿的特點是裝配了一種特殊的圓弧形的反作用力臂，設計用於卡車和公共汽車前後車輪上的螺栓擰緊。該設計非常適應車輪的裝飾罩及深凹式車輪的螺栓。
鼻型延長桿
鼻形延長桿主要用來配合系列進行使用。
適用於ptm & pt系列 鼻型延長桿
-
提供各種長度的鼻延伸。
-
spm/m = 花鍵凸/凸方頭。

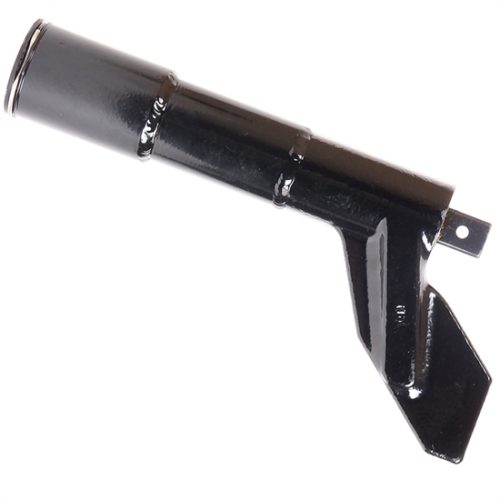

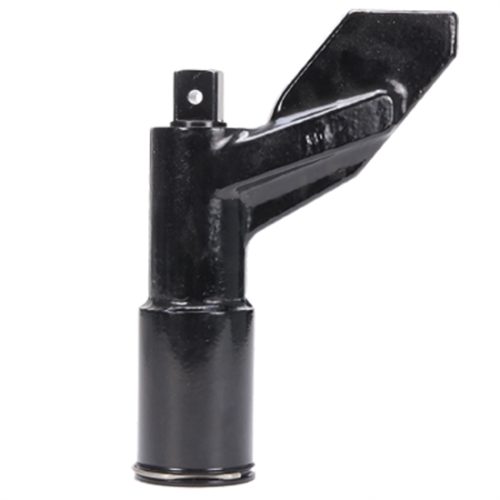

適用於52 系列 鼻型延長桿
| 型號 | 料號 | 驅動方頭in |
| ptm-52mm series 6” | 18601.006 | f/m 3∕4" |
| ptm-52mm series 9” | 18601.009 | f/m 3∕4" |
| ptm-52mm series 12” | 18601.012 | f/m 3∕4" |
適用於52系列 花鍵鼻型延長桿
| 型號 | 料號 | 長 |
| splined nose extension 6” | 19045.006 | 6" |
| splined nose extension 9” | 19045.009 | 9" |
| splined nose extension 12” | 19045.012 | 12" |
適用於72系列 鼻型延長桿
| 型號 | 料號 | 驅動方頭in |
| 72 series 6” | 19007.006 | spm/m 1" |
| 72 series 9” | 19007.009 | spm/m 1" |
| 72 series 12” | 19007.012 | spm/m 1" |
適用於80系列 鼻型延長桿
| 型號 | 料號 | 驅動方頭in |
| 80 series 9” | 19480.009 | spm/m 1" |
| 80 series 12” | 19480.012 | spm/m 1" |
適用於72系列 ¾“ 驅動方頭 花鍵鼻型延長桿
| 型號 | 料號 | 驅動方頭 in | 長 |
| splined nose extension, 6" long | 19046.006 | 3/4" | 6" |
| splined nose extension, 9" long | 19046.009 | 3/4" | 9" |
| splined nose extension, 12" long | 19046.012 | 3/4" | 12" |
適用於72 / 92系列1"驅動方頭 花鍵鼻型延長桿
| 型號 | 料號 | 驅動方頭 in | 長 |
| splined nose extension, 6" long, 1" sq.dr for et2/ebt/pts/ptm-72 | 19285.006 | 1" | 6" |
| splined nose extension, 9" long, 1" sq.dr for et2/ebt/pts/ptm-72 | 19285.009 | 1" | 6" |
| splined nose extension, 12" long, 1" sq.dr for et2/ebt/pts/ptm-72 | 19285.012 | 1" | 12" |
| splined nose extension, 6" long for et2/ebt/pts/ptm-92 | 19047.006 | 1" | 6" |
| splined nose extension, 9" long for et2/ebt/pts/ptm-92 | 19047.009 | 1" | 6" |
| splined nose extension, 12" long for et2/ebt/pts/ptm-92 | 19047.012 | 1" | 12" |
適用於卡車及汽車輪胎的 ptm-72 鼻型延長桿
-
提供各種長度的鼻延伸。
ptm-72 鼻型延長桿 - 適用於卡車及汽車輪胎
| 型號 | 料號 | 驅動方頭in | 扭力n.m | 長 |
| 9" nose extension for truck and bus wheels; fits ptm-72 series | 19087.009 | 3/4" | 1000 n.m | 9" 長 |
| 12" nose extension for truck and bus wheels; fits ptm-72 series | 19087.012 | 3/4" | 1000 n.m | 12" 長 |
| 9" nose extension for truck and bus wheels; to fit ptm-72 series | 19089.009 | 1" | 1000 n.m | 9" 長 |
| 12" nose extension for truck and bus wheels; to fit ptm-72 series | 19089.012 | 1" | 1000n.m | 12" 長 |
nose extension - introduction:-
devices are available for use in situations where the tool access is restricted. a typical application is the rear wheel nuts on heavy vehicles.
functions:-
- various lengths of nose extension are available.
