產品簡介

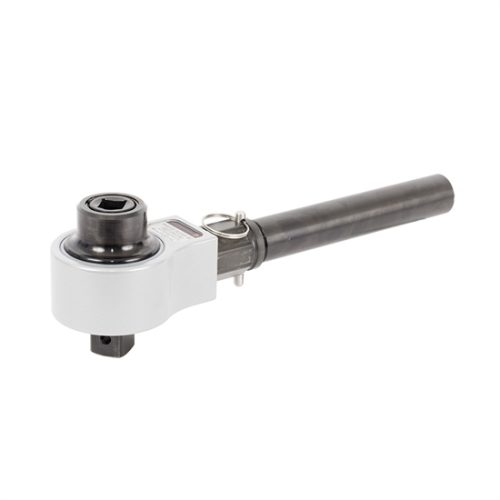

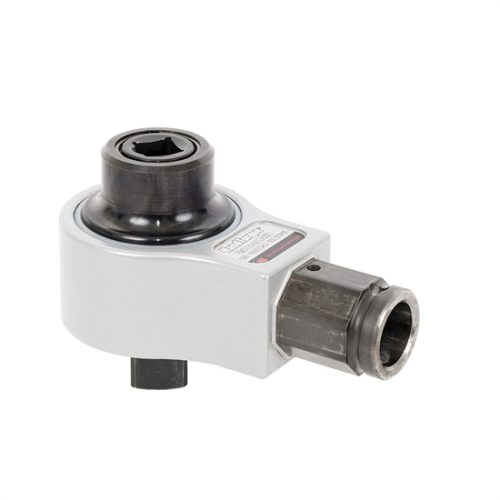

handtorque® ht3-1000 扭力倍力器 套裝
handtorque ® ht3-1000 設計用於狹小空間，或因操作人員力量的限制，而需要提供更高的扭力方式。扭力倍力器的輸入是通過棘輪扭力扳手設置，為所需輸出扭力的五分之一。

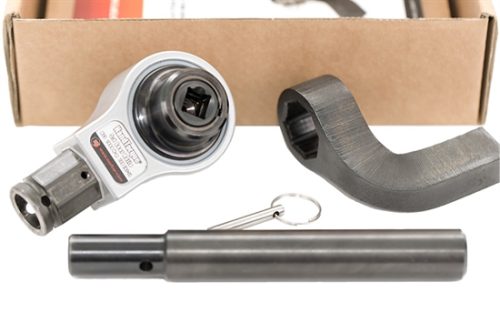

handtorque® ht3-1000 扭力倍力器 套裝
handtorque® ht3-1000 扭力倍力器 套裝 - 功能介紹

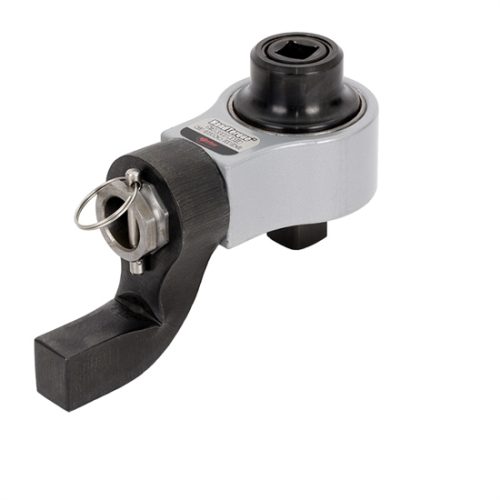

- 5:1的標稱扭力放大倍數與反作用力臂有關，5:1是標稱扭力放大倍數。安裝足型反作用力臂的為8:1，安裝直線型反作用力臂的為4.9:1
- 扭力放大倍數的精確度為±4%
- 小而輕便的設計
- 堅實的銀色金屬粉末噴塗提升了美觀性
- 提供2個不同形式的反作用力臂，使之具有廣泛的用途
- 改進了的可8個方向挂靠的靈巧的反作用力臂可快速變換
- 堅固的結構意味著最低限度的維修量和很長的使用壽命
the handtorque® ht3-1000 has been designed for use where it is necessary to provide higher torques than would otherwise be possible due to limitations of space or operator strength. input to the multiplier is via a ratchet torque wrench set to one fifth of the desired output torque.
what is a torque multiplier?
a torque multiplier is a device that increases the torque that can be applied by an operator. this is because the power output cannot exceed the power input, the number of output revolutions will be lower than the number of input revolutions (torque x rpm = power).
why use a handtorque® multiplier?
- safety – use of long levers can be dangerous. torque multipliers allow for a reduction in the lever length or operator effort
- space limitation – the use of a long lever may be impossible due to the available space
- accuracy – torque will be applied most accurately when it is applied smoothly and slowly. torque multipliers enable this by removing much of the physical effort from the tightening task
functions:-
- quick change cranked reaction with improved flexibility allowing reaction in 8 orientations
- robust construction means minimal maintenance and long life
- small and compact design
- supplied with 2 reaction bar styles for maximum versatility
- if calibration is required, a ukas accredited calibration certificate may be ordered (at extra cost)
about norbar, world leaders in torque equipment
cutting edge - norbar’s state-of-the-art factory facilities ensure we provide the very latest design, manufacturing and quality control technology to achieve the highest level of innovation and precision in the field of torque control equipment.
family values - descendants of the founder, bill brodey, still participate in the business and the company remains every bit as passionate about providing customers with the highest quality products and services as bill was when manufacturing that first torque wrench.
globally available - norbar is the only torque equipment manufacturer to be able to offer torque tool and instrument calibration services to the original factory standard on four continents.
handtorque® ht3-1000 扭力倍力器 套裝 - 產品規格
| 型號 | 料號 | 範圍 n.m | 範圍 lbf.ft | 扭力比 |
| ht3-1000 | 180260 | 1000 | 738 | 5:1 |
| 輸入方頭 in | 輸出方頭 in | 本體重量 kg | 曲柄反作用力臂重量 kg | 直柄反作用力臂重量 kg |
| 1/2” | 3/4＂ | 2.7 | 0.5 | 0.7 |
