產品簡介
ttl-he儀器和傳感器套裝
諾霸與石油和天然氣行業密切合作，研製出適用於最惡劣環境（如船舶甲板，石油鑽井平台和煉油廠）的扭力儀器和傳感器。
諾霸使用各種耐腐蝕材料，高規格連接器和密封技術，這意味著he系列產品可以在這樣最惡劣環境中使用，而不會損害其性能或壽命。
儘管最初設計是為了滿足石油和天然氣行業的需求，但是在潮濕或塵土飛揚的環境中，無論是戶外必要的應用，還是扭力測量，諾霸的he系列產品是用戶理想的選擇。
ttl-he設計用於惡劣環境下的便攜扭力測量儀器。 ttl-he使用電池電源進行操作，連接傳感器“he”範圍，防護等級為ip65/ip67。
高濕度、水或鹽水噴霧及灰塵等是典型操作環境。
功能包括：10種測量模式，13種扭力單位（帶附加用戶單元功能），12對限制及11種語言顯示。

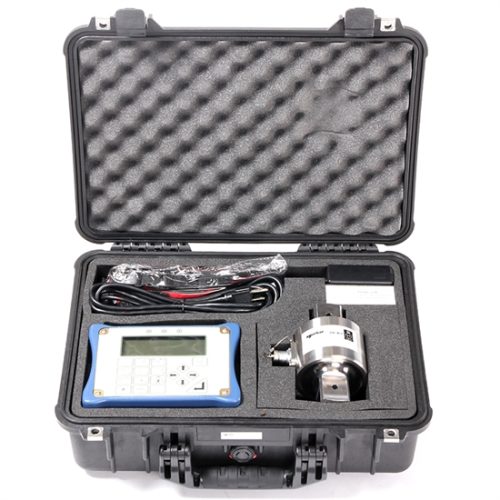

ttl-he儀器和傳感器套裝
ttl-he儀器和傳感器套裝 - 功能介紹
- ip65/67 防護等級。
- 雙向校準。
- 用於惡劣環境下的電池電源。
- 所有功能與tst和ttt儀器相同。
- 提供一個防護等級為ip67的攜帶盒。
- 為所有諾霸傳感器提供5位分辨率。
- 240 x 64像素點陣顯示，更新速率為每秒兩次。
torque tester lite – harsh environment (ttl-he) is a portable torque measuring instrument designed for use in harsh environments. the ttl-he operating on battery power with one of the ‘he’ range of transducers connected, has an ingress protection rating of ip65/ip67. typical operating environments are where high humidity, water or salt water spray and dust may be an issue. features include; 10 measurement modes, 13 units of torque (with additional user units feature), 12 pairs of limits and text displayed in 11 languages.
functions:-
- ip65/ip67 rated.
- bi-direction calibration for both instrument and transducer.
- battery power use in harsh environments (mains supply for charging).
- stainless steel design with 'smart' intelligence.
- limit indication for up to 8 user defined target values
- continuous rs-232 output
- analogue output
- supplied in a water tight carry case
about norbar, world leaders in torque equipment
cutting edge - norbar’s state-of-the-art factory facilities ensure we provide the very latest design, manufacturing and quality control technology to achieve the highest level of innovation and precision in the field of torque control equipment.
family values - descendants of the founder, bill brodey, still participate in the business and the company remains every bit as passionate about providing customers with the highest quality products and services as bill was when manufacturing that first torque wrench.
globally available - norbar is the only torque equipment manufacturer to be able to offer torque tool and instrument calibration services to the original factory standard on four continents.
stringent standards - the nata accredited laboratory in adelaide, south australia, nvlap 200596-0 accredited laboratory in willoughby, usa, sac-singlas laboratory in singapore and the laboratory in shanghai accredited by taf and cnas all use the same equipment and procedures as the factory's ukas accredited laboratory, so you are assured that you will always receive the same high standard of service that are norbar’s hallmark.
ttl-he儀器和傳感器套裝 - 產品規格
| 型號 | 料號 | 品名 |
| ttl-he | 43217 | ttl-he儀器 (含ip67防護等級攜帶盒） |
| ttl-he | 60287.log* | 5,000 n·m m/m ttl-he 套裝，含連接線 （class 4） |
| ttl-he | 60295.log* | 10,000 n·m m/m ttl-he 套裝，含連接線（class 5） |
| ttl-he | 60296.log* | 15,000 n·m m/m ttl-he 套裝，含連接線（class 6） |
| ttl-he | 60289.log* | 40,000 n·m m/m ttl-he 套裝，含連接線（class 7） |
*用於干預工具測試台的套裝
