產品簡介

protronic® plus 電子式扭力扳手

protronic® plus 保留了 protronic® 標準版本中的所有可用功能,並包含更多高級功能。配備bluetooth® 的 protronic® plus 可與獨家創建的應用軟體共同使用,在戶外提供更直觀的控制。

protronic® plus 電子式扭力扳手

protronic® plus 保留了 protronic® 標準版本中的所有可用功能,並包含更多高級功能。配備bluetooth® 的 protronic® plus 可與獨家創建的應用軟體共同使用,在戶外提供更直觀的控制。

protronic® plus 電子式扭力扳手 - 功能介紹

  • 扭力角度結合(torque and angle combo)模式令使用者可同時監測扭力及角度(專利技術)。
  • 配合新開發的torqapp™軟體使用,實現實時流媒體讀值傳輸。
  • 可特別設置雙漸進式led,實現用戶自定義使用偏好設定。
  • 工具編程最多可實現50個預設。預設鎖定功能僅允許可預設的操作員進行工具設置。
  • 序列編程和作業模式允許用戶以特定序列將預設鏈接在一起。
  • 提供ukas認可的雙向扭力校准證書。

the protronic plus retains all the features available in the protronic standard versions with more advanced features included. equipped with bluetooth the protronic plus will work alongside a specially created app for more intuitive control when out in the field.

functions:-

  • dual progressive leds positioned both sides of the wrench provide an easy visual representation of torque progress allowing the user to more easily anticipate torque target
  • large lcd screen with bright backlight; numbers become larger and bolder during active torque for optimal viewing
  • four alert modes (lcd, progressive led, audible, tactile) provide excellent feedback in all working conditions
    5 easily selectable torque units (n·m, lbf·ft, lbf·in, dn·m, kg·cm and kg·m)
  • a wide range of advanced features (cycle counter, customisable sleep timer, language selection, auto torque calculation for torque adaptors, calibration alerts, battery level indication, and numerous alert mode customisations) allow the user to tailor the tool to their work preferences
  • torque then angle mode gives the user the ability to conveniently apply an angle to a fastener directly after achieving a torque target without the need to remove the torque wrench from the application
  • power interruption technology helps to prevent loss of work and continuity if the wrench is impacted
  • patent pending built-in calibration factor feature allows different head lengths to be easily accommodated
  • handle designed for a comfortable and secure grip
  • battery cap has been designed to prevent accidental loosening
  • storage case included
  • supplied with a traceable 'calibration certificate' allowing end users to adhere to more stringent quality control processes
  • patent pending torque and angle combo modes allows the user to monitor torque and angle simultaneously
    works alongside newly developed app designed for instant downloading of readings
  • up to 50 pre-sets can be programmed in the tool with the ability to lockout helping to ensure against unauthorised setting changes
  • sequence programming and job modes allows the user to chain together pre-sets in a particular sequence
  • ukas accredited torque calibration in both clockwise and counterclockwise direction



protronic® plus 電子式扭力扳手 - 產品規格

型號 料號 驅動方頭in 範圍n.m

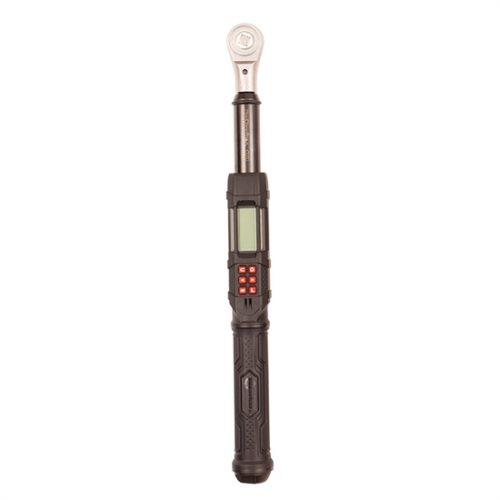

protronic plus 100 3/8" 130512 3/8" 5-100
protronic plus 100 1/2" 130513 1/2" 5-100

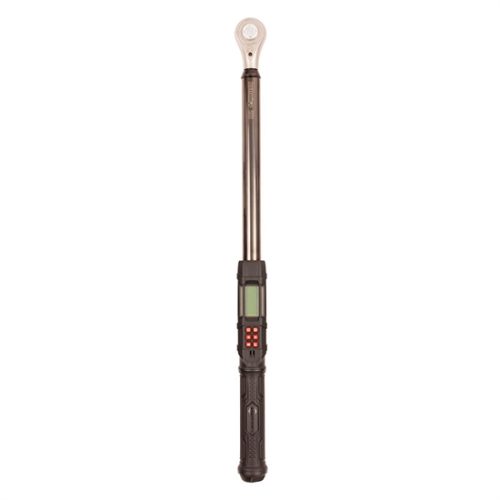

protronic plus 200 1/2" 130514 1/2" 10-200
protronic plus 340 1/2" 130515 1/2" 17-340

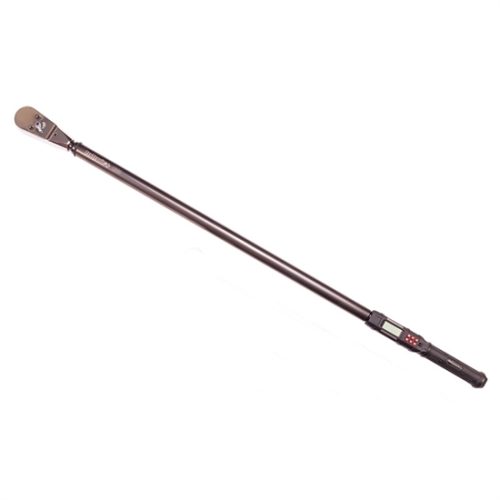

protronic plus 800 3/4" 130516 3/4" 40-800
