nortronic® 電子式 扭力扳手 -九游会j9官方登录

產品簡介

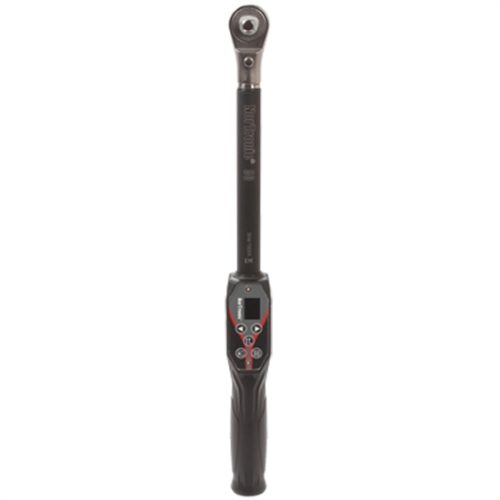

nortronic® 電子式 扭力扳手

nortronic®,是諾霸優秀的電子式扭力扳手,其獨特的扭力數據系統(tds)軟體與高精度,無線通訊能力和角度測量相結合,並將這些特點打包在一個通用的,堅固耐用的和易於使用的包裝中。

nortronic® 電子式 扭力扳手

nortronic®,是諾霸優秀的電子式扭力扳手,其獨特的扭力數據系統(tds)軟體與高精度,無線通訊能力和角度測量相結合,並將這些特點打包在一個通用的,堅固耐用的和易於使用的包裝中。

nortronic® 電子式 扭力扳手 - 功能介紹

  • 精確的和可追溯的扭力和角度控制。
  • 兩個互成90°彩色oled顯示屏提供水平和垂直方向的視覺指示。
  • 3個型號覆蓋5 nm-330 n·m。
  • ip44防護等級防止灰塵和水的侵入。
  • 一個鋁合金手柄
  • 擠制鋁合金盒。

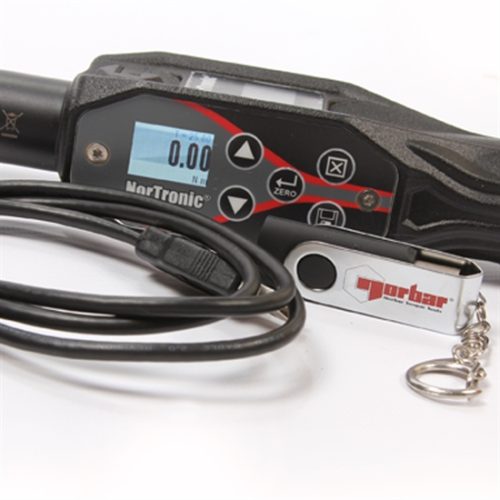

  • 扭力和角度的數據通過usb數據線或以無線的方式實時地傳送至tds,或者從tds實時地下載至扳手。電腦需要安裝一個無線適配器才能無線下載,每個無線適配器最多可以處理8把扭力扳手。
  • 可連接諾霸stpc智慧螺絲鎖附系統
  • 可通過tds或第三方軟體顯示工具校準日期。
  • ascii模式下工具可連接第三方軟體。
  • 配合handtorque®倍力器使用時,nortronic可直接顯示、保存及傳輸handtorque®倍力器輸出端數據。
  • 可設定扭力、角度及最終扭力目標值。
  • 可通過usb連接工具,生成並保存扭矩及角度曲線(實時)。
  • 工具一次最多可擁有15個連接或未連接的目標值。
  • 根據vdi/vde 2648標准進行角度校準。
  • 提供雙向可追溯ukas扭力校準。

the nortronic®, norbar's electronic torque wrench, sets the benchmark with its unique torque data system (tds) software and combination of accuracy, wireless capability and angle measurement, in a versatile, robust and easy to use package.

in order to communicate wirelessly between a nortronic and a pc it is necessary to purchase the appropriate usb wireless adaptor. this is sold separately because each adaptor can handle up to eight nortronic wrenches.

there are two communication frequency versions of the nortronic because different countries operate different licence free radio transmission bands. the two frequencies that we offer cover most areas of the world.

functions:-

  • test results are time and date stamped for traceability
  • two full colour oled displays positioned at 90 degrees for great visibility
  • colour indicator on display changes when target torque/angle has been reached
  • audible and vibration feedback when set target of torque/angle has been reached
  • torque calibration in both clockwise and anti-clockwise direction
  • ability to have up to 15 linked or non-linked targets on the tool at any one time
  • ability to set a torque, angle and final torque target
  • directly display, save and send the output torque of a ht (hand torque) gearbox when used in conjunction with a nortronic
  • send up to 15 sequential or non-sequential targets to a nortronic tool
  • real time graph creation from a usb connected tool
  • create a report from stored results
  • supplied with a calibration certificate, which meets the requirements of iso 6789-2:2017
  • bluetooth® interface with plaintext protocol for easy integration into user environments; set targets, get results and stream live torque and angle data using your own software and equipment on phones, computers, tablets and more, via bluetooth® or usb
  • ascii mode for interfacing to third party control systems
  • tds (torque data system) software included for complete data management and archiving to a pc. includes seamless data synchronisation (usb only)

nortronic® 電子式 扭力扳手 - 產品規格

nortronic 868 mhz

型號 料號 驅動方頭in 範圍n.m 範圍mhz
nortronic 50 3/8" 43500 3/8" 5-50 868
nortronic 50 1/2" 43501 1/2" 5-50 868
nortronic 200 1/2" 43502 1/2" 20-200 868
nortronic 330 1/2" 43503 1/2" 33-330 868

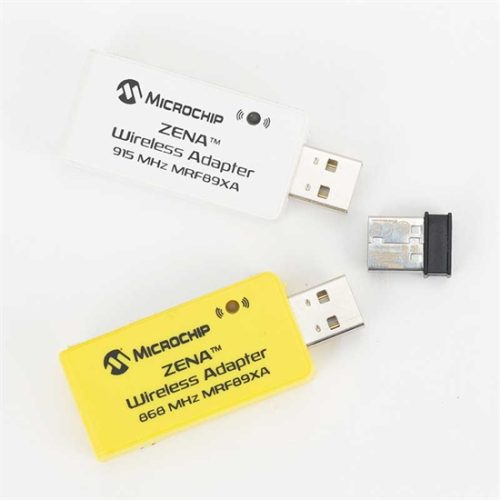

usb無線適配器 43508
  1. 868 mhz 無線適配器與 868 mhz nortronic 扭矩扳手一起使用。
  2. 適用於美國,加拿大,澳大利亞和紐西蘭。

nortronic 915 mhz

型號 料號 驅動方頭in 範圍n.m 範圍mhz
nortronic 50 3/8" 43504 3/8" 5-50 915
nortronic 50 1/2" 43505 1/2" 5-50 915
nortronic 200 1/2" 43506 1/2" 20-200 915
nortronic 330 1/2" 43507 1/2" 33-330 915
usb無線適配器 43509



nortronic bluetooth®藍牙

型號 料號 驅動方頭in 範圍n.m
nortronic 50 3/8" 43534 3/8" 5-50
nortronic 50 1/2" 43535 1/2" 5-50
nortronic 200 1/2" 43536 1/2" 20-200
nortronic 330 1/2" 43537 1/2" 33-330

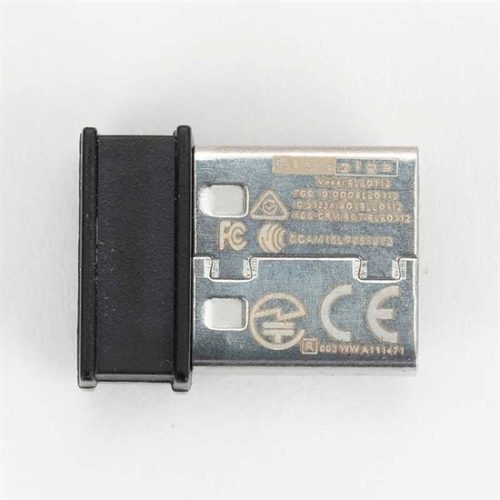

usb無線適配器bluetooth®藍牙 43513
