evotorque 2 電動扭力扳手 -九游会j9官方登录

evotorque 2 電動扭力扳手

evotorque 2 電動扭力扳手-功能介紹

• 多扭力測量單位選擇，nm、lbf·ft、ft·lb及kgf·m。
• 按照工具額定值的20%至100%範圍進行校準。
• 支持扭力、扭力 & 角度及扭力核查模式。
• 在扭力 & 角度及扭力核查模式下，可以從工具最大值的10%起設定扭力。

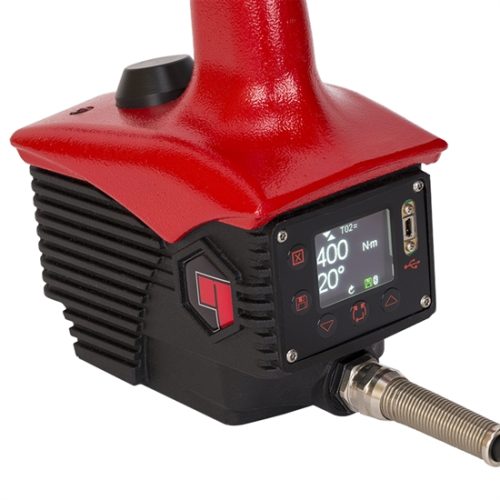

• 顯示並在主板上存儲最終扭力值或扭力與角度值。
• 3000個讀值存儲, 附帶時間和日期。
• 成功完成連接應用後給予明確提示。

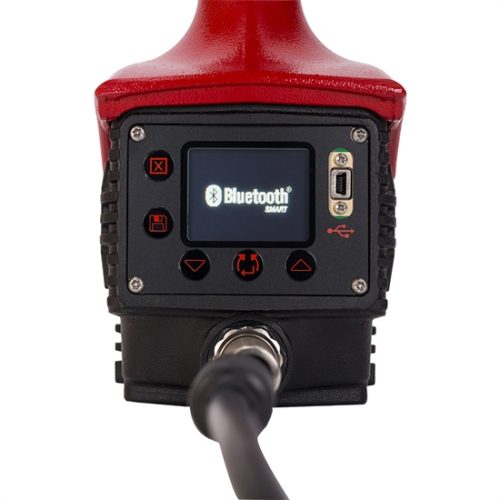

• usb和bluetooth®4.0數據傳輸（也稱為bluetooth®smart）。

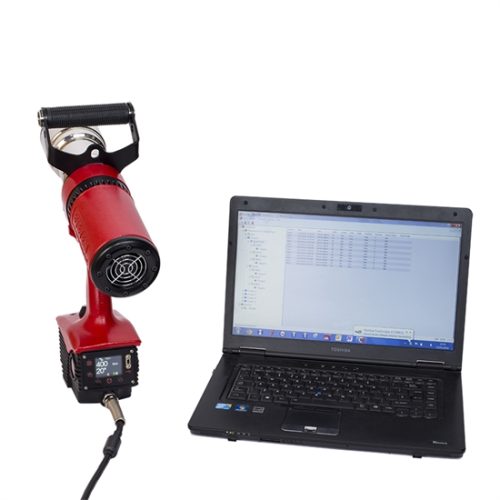

• 配備pc軟體“evolog”，用於數據管理與工具設定。
• 可下載12個用戶id至工具，每個用戶可以單獨存儲結果。
• 每個工作組可設置20個獨立目標值和20個工作組目標值。
• 對於不會使用evolog軟體的用戶，結果可以以csv(逗號分隔值)的格式輸出給用戶。
• 可通過生成並儲存實時圖表。
• 扭力與角度功能含最終扭力。
• “使用計數器”可以查看該工具自上次重置計數以來的使用次數。
• “操作方向”功能主要設計用於拆卸螺栓。在進行順序擰緊時，可在不中斷順序的情況下撤銷未正確擰緊的螺栓。
• 二級擰緊提供扭力閾值與角度目標值更快的應用。
• “轉角”選項可以用於檢查裝配過程中是否已擰緊螺栓。
• 工具可集成至第三方控制系統中。
• 兩種不同鎖定級別。鎖定級別1與之前鎖定相同，鎖定級別2則強制執行屏幕運行或目標值而不允許用戶修改。
• 最大查核模式目標角度為720°。

evotorque 2 電動扭力扳手 - 產品參數

evotorque 2-110 v

evotorque 2-230 v

electric torque wrench - introduction:-

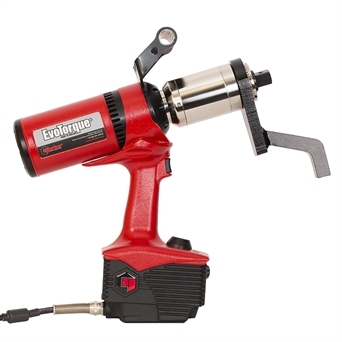

the evotorque®2 is an electronic torque tool designed to accurately apply torque to threaded fasteners. tools are factory calibrated to ±3% of reading.
the unique ‘intelligent joint sensing’ technology continually measures the joint during tightening and when necessary, employs dynamic braking to
avoid torque over-shoot due to motor inertia. consequently, evotorque®2 can apply torque accurately over a wide range of joint rates from hard (high
torque rate) through to soft (low torque rate). all evotorque®2 tools are highly tolerant of supply voltage and frequency variation. if the supply voltage
is outside of tolerance then, as a safety feature, the tool will be prevented from starting.
the evotorque®2 has the ability to memorise multiple targets, work ids, user ids and readings. a work sequence (flow) can be performed on the
evotorque®2, taking the user through a pre-defined tightening sequence. the tool has four modes of operation: torque, torque & angle, torque & angle
with final torque and torque audit. the unique audit mode is a sophisticated feature for testing pre-tightened bolts with minimal impact on the original
fastening torque and can provide quality control data for monitoring joint performance over time. with accuracy and repeatability of ±3% of the setting,

functions:-

• 'usage' counter gives the ability to see the amount of times the tool has been used since the last reset
• "operation direction" designed primarily for undoing bolts. when doing sequence tightening, it is now possible to undo an incorrectly tightened bolt without interrupting the sequence
• 2 stage tightening gives faster application of a snug torque & angle target
• "turn angle" option can be used to check if bolts have already been tightened in an assembly process
• allows tool integration into third party control systems
• maximum audit mode target angle increased to 720 degrees
• ability to produce and store real time graphs via evolog
• 2 different lock levels, lock level 1 as per previous lock, lock level 2 will not allow user to exit the run screen or change the target
• torque, torque & angle, torque & angle with final torque or torque audit modes
• supplied in a bespoke robust and durable pelicase
• each tool is supplied with a traceable calibration certificate
• for more features please see link to sales leaflet under catalogue below
• calibrated to 20% - 100% of tool's maximum capacity
• operational targets can be set from 10% of tool capacity
