產品簡介

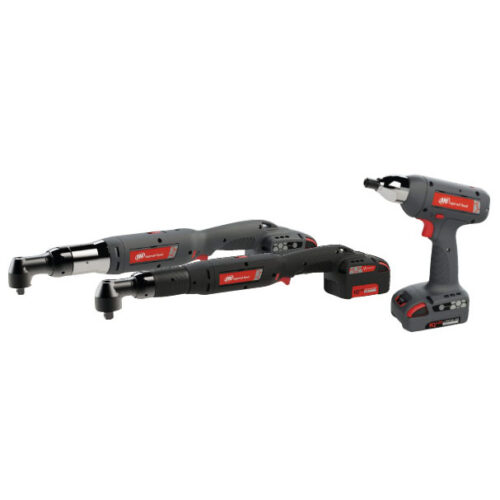

the versatile qxfd, qxbn/qxbd series feature 32 tightening configurations, offering the ability to consolidate the number of tools needed in your bag or bench. the series also enhances the feedback provided from the tool by displaying th measured torque or angle results to the operator. the qxbn & qxbd models further add bluetooth connectivity & program the tools via wireless using the insight connect app.

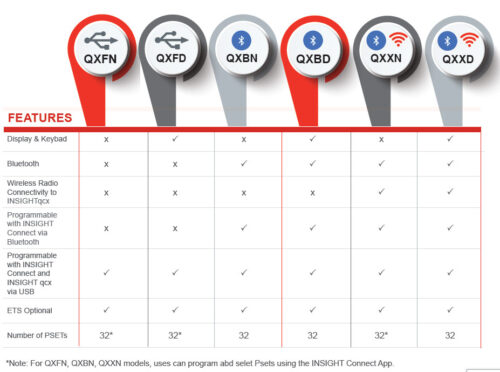

| features | qxfn | qxfd | qxbn | qxbd | qxxn | qxxd |
| display & keybad | x | √ | x | √ | x | √ |
| bluetooth | x | x | √ | √ | √ | √ |
| wireless radio connectivity to insightqcx | x | x | x | x | √ | √ |
| programmable with insight connect via bluetooth | x | x | √ | √ | √ | √ |
| programmable with insight connect and insight qcx via usb | √ | √ | √ | √ | √ | √ |
| ets optional | √ | √ | √ | √ | √ | √ |
| number of psets | 32 | 32 | 32 | 32 | 32 | 32 |
*note: for qxfn, qxbn, qxxn models, uses can program abd selet psets using the insight connect app.
- flexibility to utilize the same tool on multiple applications
- program 32 psets configurations into one tool
- visual torque validation on display
- transducerized for precise torque measurement
- closed-loop control of torque, speed and degrees of rotation
- flexible connectivity options with bluetooth for simple programming using the insight connect app or back of tool programming.
- visual operator feedback using green, yellow and red lights
- programmable preventative maintenance alarms
- maintenance indicator for troubleshooting and diagnostics
- 1200 cycles of data storage
| 型號 | n.m | 轉速 | 重量 kg | 電壓 | 驅動頭 |
| qxbn2pt004pq04 | 0.8–4 | 1,500 | 0.91 | 20 v | 1/4” quick change |
| qxbn2pt004ps04 | 0.8–4 | 1,500 | 0.91 | 20 v | 1/4” square |
| qxbn2pt004ps06 | 0.8–4 | 1,500 | 0.91 | 20 v | 3/8” square |
| qxbn2pt008pq04 | 1.6-8 | 1,150 | 0.91 | 20 v | 1/4” quick change |
| qxbn2pt008ps04 | 1.6-8 | 1,150 | 0.91 | 20 v | 1/4” square |
| qxbn2pt008ps06 | 1.6-8 | 1,150 | 0.91 | 20 v | 3/8” square |
| qxbn2pt012pq04 | 2.4-12 | 750 | 0.91 | 20 v | 1/4” quick change |
| qxbn2pt012ps04 | 2.4-12 | 750 | 0.91 | 20 v | 1/4” square |
| qxbn2pt012ps06 | 2.4-12 | 750 | 0.91 | 20 v | 3/8” square |
| qxbn2pt018pq04 | 3.6-18 | 500 | 0.91 | 20 v | 1/4” quick change |
| qxbn2pt018ps06 | 3.6-18 | 500 | 0.91 | 20 v | 3/8” square |
| qxbn2at005pq04 | 1.0-5 | 1,213 | 1.14 | 20 v | 1/4” quick change |
| qxbn2at010ps06 | 2.0-10 | 936 | 1.18 | 20 v | 3/8” square |
| qxbn2at015ps06 | 3.0-15 | 600 | 1.18 | 20 v | 3/8” square |
| qxbn2at018pq04 | 3.6-18 | 500 | 1.27 | 20 v | 1/4” quick change |
| qxbn2at018ps06 | 3.6-18 | 500 | 1.27 | 20 v | 3/8” square |
| qxbn2at027ps06 | 5.4-27 | 330 | 1.68 | 20 v | 3/8” square |
| qxbn5at020ps06 | 4.0-20 | 1,045 | 2.04 | 40 v | 3/8” square |
| qxbn5at030ps06 | 6.0-30 | 775 | 2.18 | 40 v | 3/8” square |
| qxbn5at030ps08 | 6.0-30 | 775 | 2.18 | 40 v | 1/2” square |
| qxbn5at035ps06 | 7.0-35 | 640 | 2.18 | 40 v | 3/8” square |
| qxbn5at035ps08 | 7.0-35 | 640 | 2.18 | 40 v | 1/2” square |
| qxbn5at040ps08 | 8.0-40 | 545 | 2.27 | 40 v | 1/2” square |
| qxbn5at080ps08 | 12.0-80 | 375 | 2.27 | 40 v | 1/2” square |
