產品簡介
-

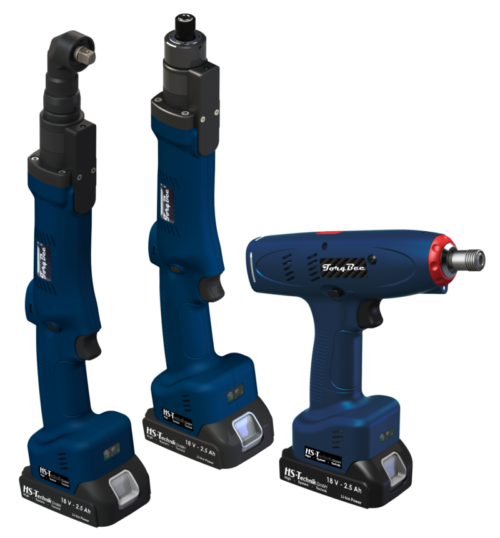

programmable battery dc tool with action and reaction sensor (redundancy)
-
programmable battery dc tool with action and reaction sensor (redundancy)
- rotating torque and rotation angle sensor
redundant torque reaction sensor - machine capability according to vdi / vde 2645 – sheet 2
/- 7 % cm > 2,00 | cmk > 1,67 - programmable in 6 steps
– torque
– current
– angle
– speed of rotation
– time - handle vibration alarm
- all-around multicolor led indicator light
- intelligent battery management
- brushless high performance motor
- tightening result display
- recuperation (energy recovery) extends battery life
- maximum ergonomics
- led lighting for the tightening environment
- updates can be performed via usb
- oled display
- screw counter
- count memory function
- 100 individual programs
- min. 150,000 tightening results incl. torque and angle curve
are stored on the tool - ok / nok evaluation of the shut-off result
- all common tightening strategies programmable
- torque reaction sensor as redundancy vdi / vde 2862
- optional: barcode scanner & wi-fi
- rotating torque and rotation angle sensor
| model | driver type | 扭矩範圍n.m | 轉速 rpm | 轉接頭 | 尺寸 mm | 重量 kg |
| tbpec2-10 | pistol | 0.8-11.0 | 740 | 1/4" e型 | 230 x 72 x 211 | 1.15 |
| tbpec2-12 | pistol | 1.0-14.0 | 530 | 1/4" e型 | 230 x 72 x 211 | 1.15 |
| tbaec2-10-2(4) | angle | 1.5-10.0 | 700 | 1/4"驅動方頭 | 487 x 72 x94 | 1.43 |
| tbaec2-12-3 | angle | 2.0-12.0 | 520 | 3/8"驅動方頭 | 463 x 72 x94 | 1.45 |
| tbaec2-20-3 | angle | 5.0-20.0 | 370 | 3/8"驅動方頭 | 452 x 72 x94 | 1.45 |
| tbaec2-30-3 | angle | 10.0-30.0 | 240 | 3/8"驅動方頭 | 530 x 72 x94 | 2.25 |
| tbaec2-55-3(5) | angle | 20.0-55.0 | 130 | 3/8"驅動方頭 | 586 x 72 x94 | 2.67 |
| tbaec2-85-5 | angle | 30.0-85.0 | 80 | 1/2"驅動方頭 | 630x 72 x94 | 3.00 |
| tbaec2-120-5 | angle | 35.0-120.0 | 60 | 1/2"驅動方頭 | 647x 72 x94 | 3.40 |
| tbsec2-10 | straight | 0.8-11.0 | 740 | 1/4" e型 | 410 x 72 x94 | 1.22 |
| tbsec2-12 | straight | 1.0-14.0 | 530 | 1/4" e型 | 410 x 72 x94 | 1.22 |
